- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A

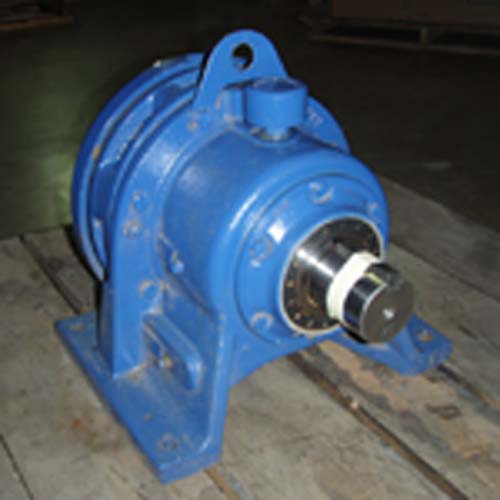

Manufacturer:       SUMITOMO SM-CYCLO Our ID No.       007313
Model:       CHHS-6175Y-R2-25 Ratio:       25
MO# or S/N       TL0087513 Alt. S/N
IP Speed       1750 HP rating       26.2 Cat. Rating
OP Speed:       SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      22,400 Lb-Inches Shaft Diameters High Speed:   1.375
Low Speed:   2.750
Weight       276 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
25:1

70 RPM
26.2 HP
1170 RPM
46.8 RPM
21.7 HP
870 RPM
34.8 RPM
16.2 HP
580 RPM
23.2 RPM
10.8 HP
Notes:
Condition: NEW SURPLUS
