- Speed Reducer Data Sheet -
HOME

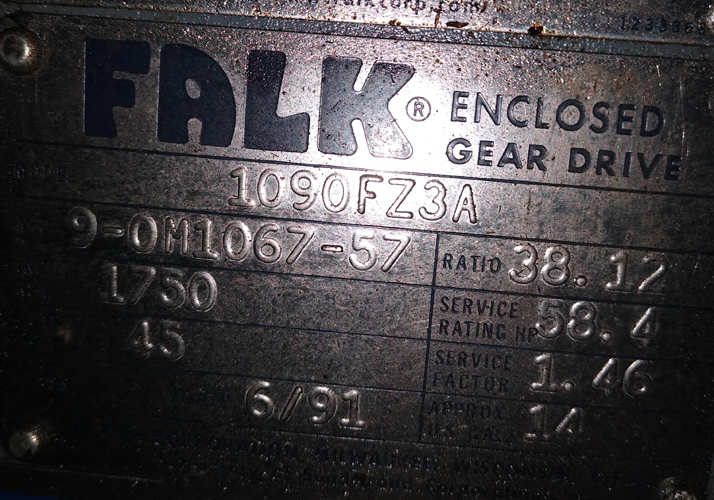

N A M E P L A T E       D A T A
Manufacturer:       FALK Our ID No.       007329
Model:       1090FZ3A Ratio:       38.12
MO# or S/N       9-0M1067-57 Alt. S/N
IP Speed       1750 HP rating       58.4 Cat. Rating
OP Speed:       45 SF / SC       1.46
Date       6/91 Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       80100 Lb-Inches Shaft Diameters High Speed:   2.0000
Low Speed:   4.0000
Weight       950 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
38.12:1

45 RPM
58.4 HP
1430 RPM
37 RPM
48.5 HP
1170 RPM
30 RPM
40.2 HP
870 RPM
22 RPM
30.5 HP
720 RPM
18 RPM
25.5 HP
580 RPM
15 RPM
20.8 HP
Notes:
Condition:


8/02 - REBUILT

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

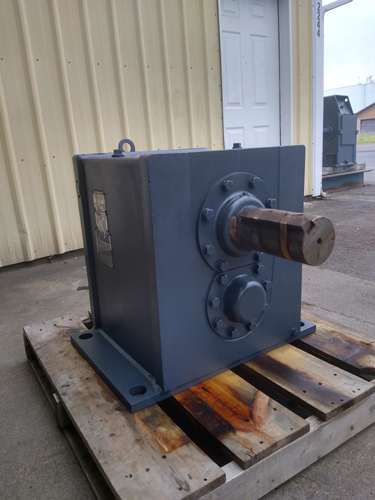

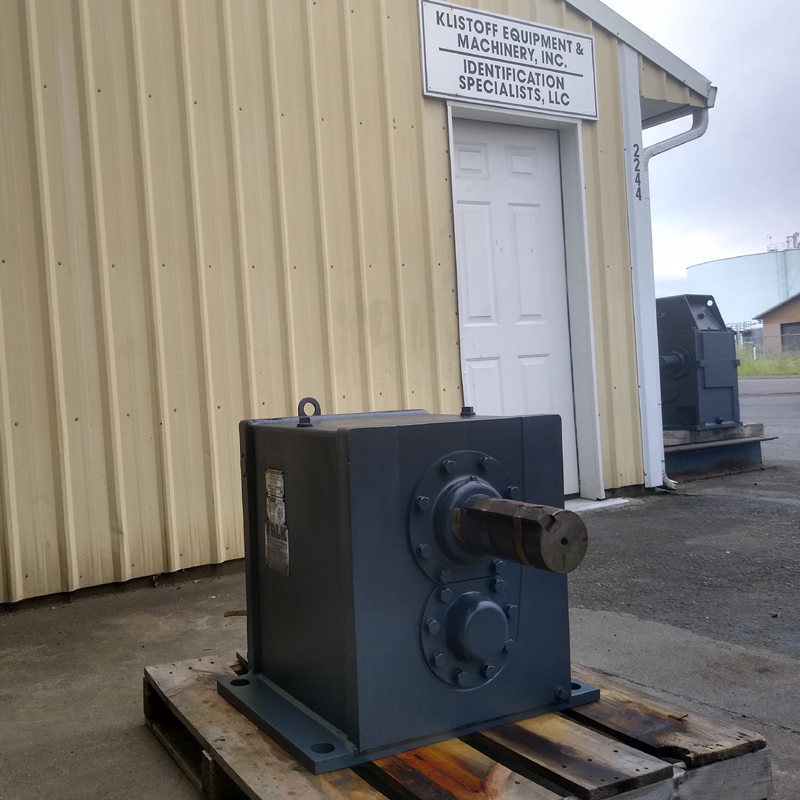

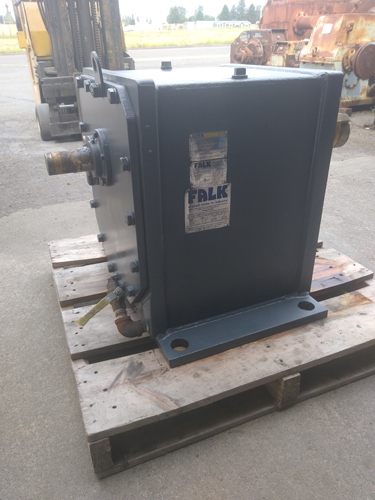

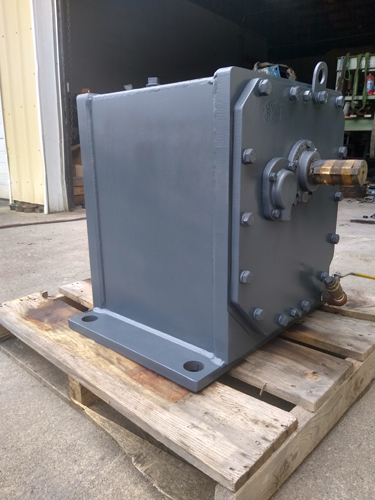

Click on images for larger view.
