Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       FALK Our ID No.       007337
Model:       1070FC2A Ratio:       13.50
MO# or S/N       8-2M2075-02 Alt. S/N
IP Speed       860 HP rating       20 Cat. Rating
OP Speed:       62 SF / SC       2.13
Date       6/82 Oil Capacity       5 GALS
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       40500 Lb-Inches Shaft Diameters High Speed:   2.1250
Low Speed:   3.250
Weight       480 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
13.50:1

125 RPM
83.3 HP
1430 RPM
100 RPM
68.7 HP
1170 RPM
84 RPM
56.6 HP
870 RPM
62 RPM
42.6 HP
720 RPM
50 RPM
35.5 HP
580 RPM
42 RPM
28.8 HP
Notes:
Condition:



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

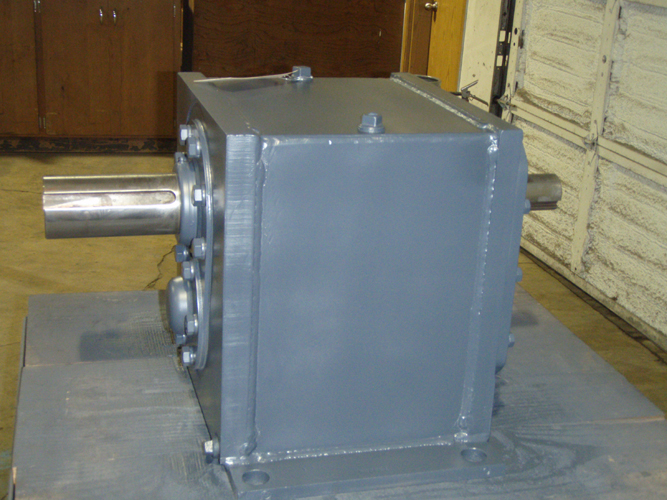

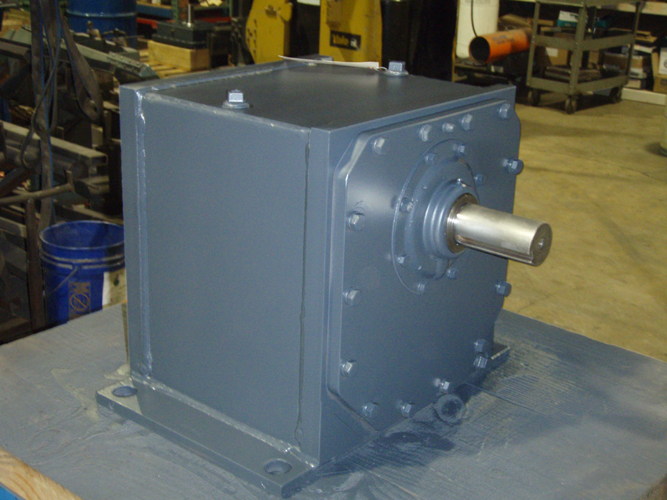

Click on images for larger view.
