- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A

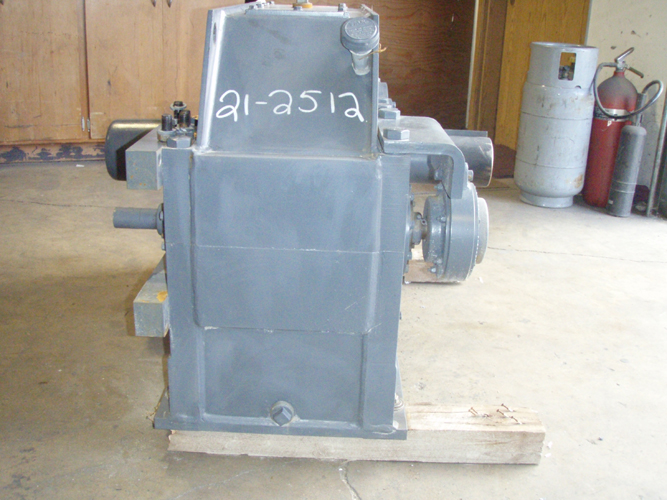

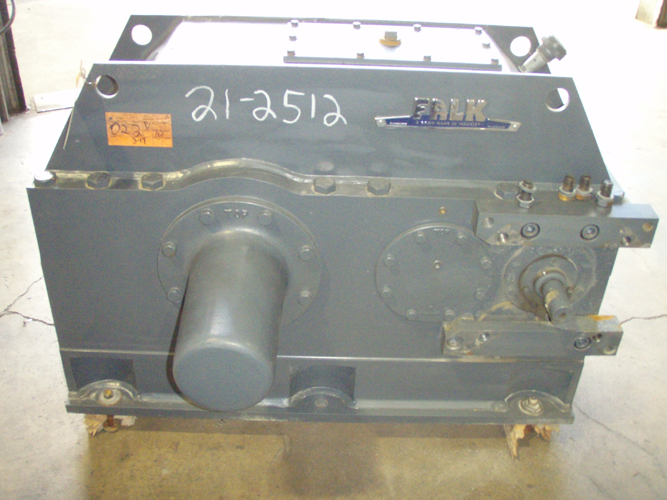

Manufacturer:      FALK Our ID No.      007638
Model:      2100Y3-LR Ratio:      154.70
MO# or S/N      95-066651-01 Alt. S/N
IP Speed      1750 HP rating      20 Cat. Rating
OP Speed:      11.3 SF / SC      1.76
Date      6/95 Oil Capacity      15
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      195,000 Lb-Inches Shaft Diameters High Speed:
Low Speed:
Weight      2020 Lbs Approx. Assembly      19
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
154.70

11.00 RPM
35.10 HP
1430 RPM
9.00 RPM
28.90 HP
1170 RPM
7.5 RPM
23.70 HP
870 RPM
5.50 RPM
17.70 HP
720 RPM
4.50 RPM
14.70 HP
580 RPM
3.80 RPM
11.90 HP
Notes:
Condition:


EQUIPPED WITH BACKSTOP
