- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      007792
Model:      1002-8EM2-46B Ratio:      6.211
MO# or S/N      06-0R0995-02 Alt. S/N
IP Speed      1750 HP rating      100 Cat. Rating
OP Speed:      282 SF / SC      2.95
Date      02/07 Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       66,000 Lb-Inches Shaft Diameters High Speed:  2.125
Low Speed:  4.500
Weight      1400 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
6.211

280 RPM
295 HP
1430 RPM
230 RPM
246 HP
1170 RPM
190 RPM
207 HP
870 RPM
140 RPM
159 HP
720 RPM
115 RPM
134 HP
580 RPM
RPM
HP
Notes:
Condition: Factory Rebuilt


FALK-RENEW Rebuilt Surplus

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

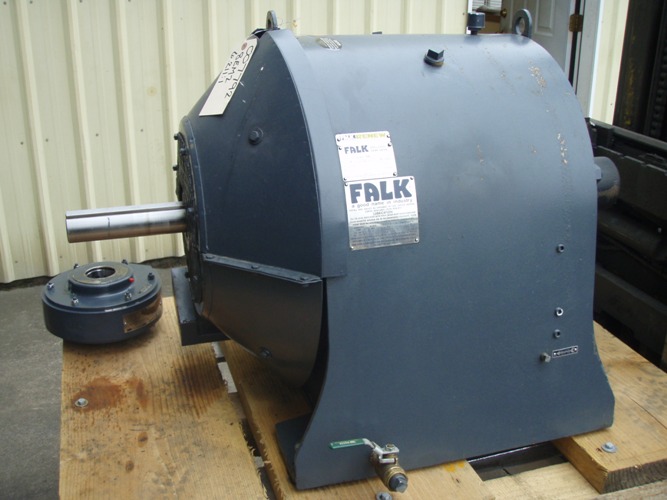

Click on images for larger view.
