- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      007885
Model:      545A3-CS Ratio:      62.22
MO# or S/N      96-076126-02 Alt. S/N
IP Speed      1170 HP rating      400 Cat. Rating      883
OP Speed:      18.8 SF / SC      2.21
Date      12/96 Oil Capacity      140
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      2,959,000 Lb-Inches Shaft Diameters High Speed:  4.500
Low Speed:  11.500
Weight      20,000 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
62.22

27 RPM
1321 HP
1430 RPM
22 RPM
1080 HP
1170 RPM
18 RPM
883 HP
870 RPM
14 RPM
657 HP
720 RPM
11 RPM
544 HP
580 RPM
9.1 RPM
438 HP
Notes:
Condition:
Foote-Jones 2503HLD 2503HLE has the same center distance

Was Spare, Surplus Unit W/Cooling Tubes Shaft lengths: O=26.28, N=38.28

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

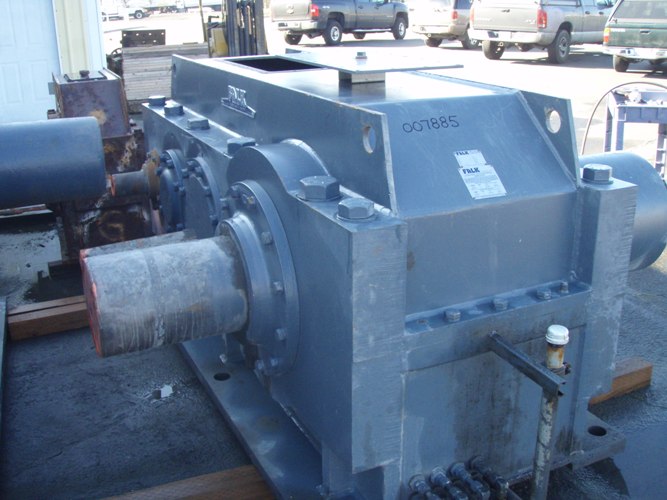

Click on images for larger view.
