N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      007902
Model:      1050FZ4A Ratio:      193.2
MO# or S/N      96-0B0617-01 Alt. S/N
IP Speed      1750 HP rating      1 Cat. Rating
OP Speed:      8.9 SF / SC      1.81
Date      6/96 Oil Capacity      3.2
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      12,600 Lb-Inches Shaft Diameters High Speed:  1.000
Low Speed:  2.500
Weight       Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
193.2

9 RPM
1.81 HP
1430 RPM
7.5 RPM
1.56 HP
1170 RPM
6 RPM
1.34 HP
870 RPM
4.5 RPM
1.02 HP
720 RPM
3.8 RPM
0.846 HP
580 RPM
3.0 RPM
0.683 HP
Notes:
Condition: NEW SURPLUS



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

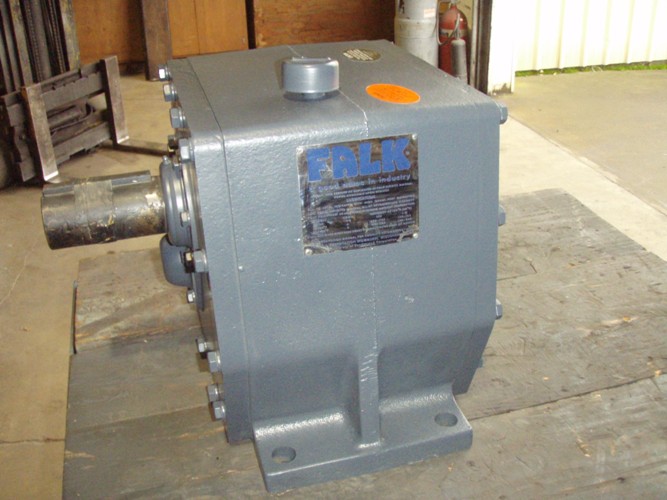

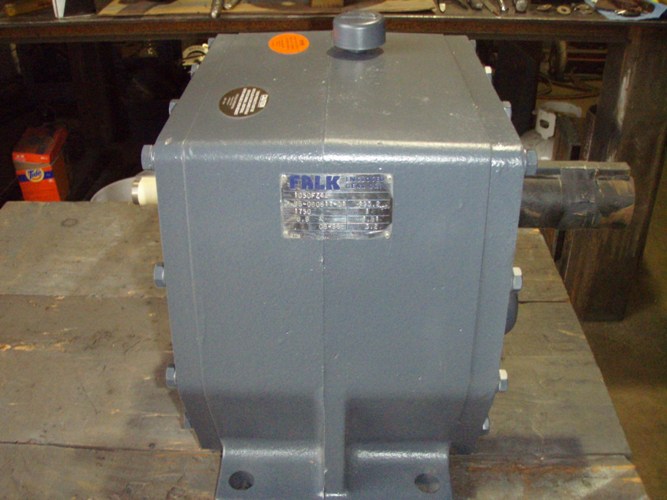

Click on images for larger view.
