- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      007908
Model:      2130Y2-LD Ratio:      32.30
MO# or S/N      8-366265 Alt. S/N
IP Speed      1775 HP rating      200 Cat. Rating
OP Speed:      55 SF / SC      1.49
Date      1/84 Oil Capacity      39
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      346,000 Lb-Inches Shaft Diameters High Speed:  4.500
Low Speed:  6.500
Weight      4,520 Lbs Approx. Assembly       7
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
32.30

56 RPM
298 HP
1430 RPM
45 RPM
282 HP
1170 RPM
37 RPM
213 HP
870 RPM
28 RPM
165 HP
720 RPM
22 RPM
140 HP
580 RPM
18 RPM
115 HP
Notes:
Condition: USED


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

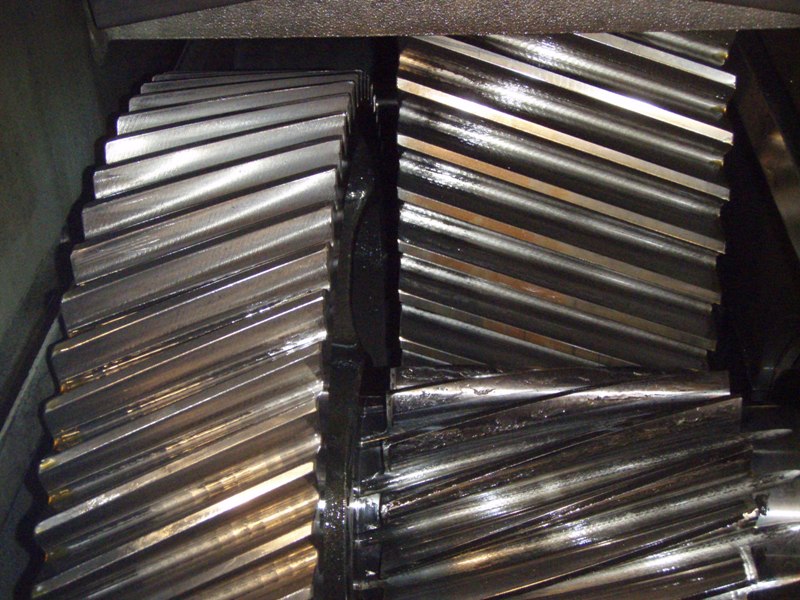

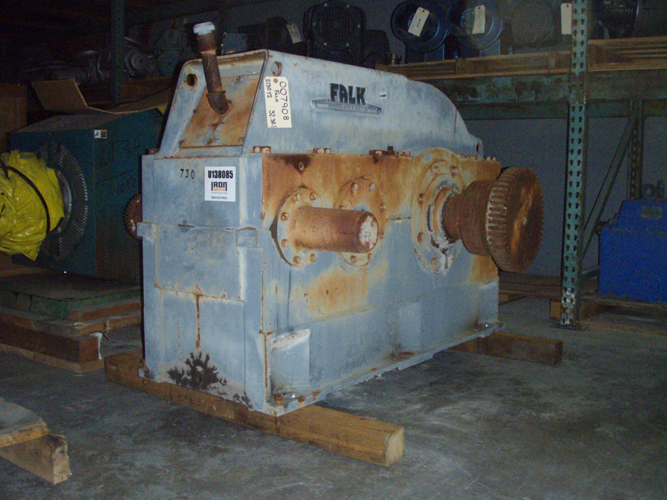

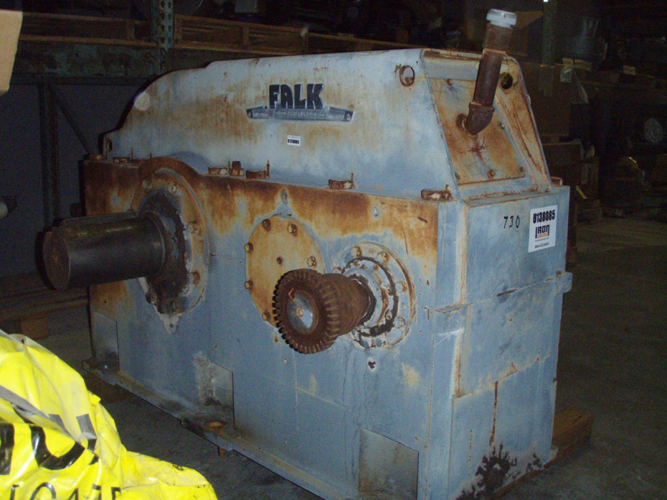

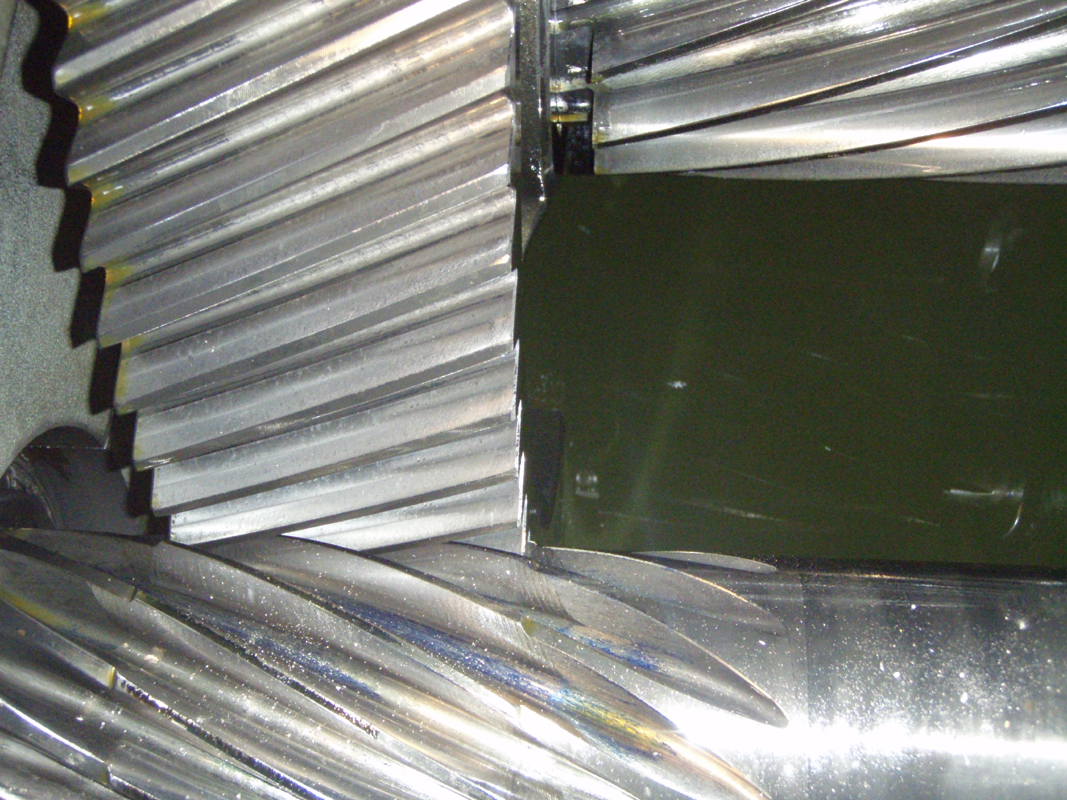

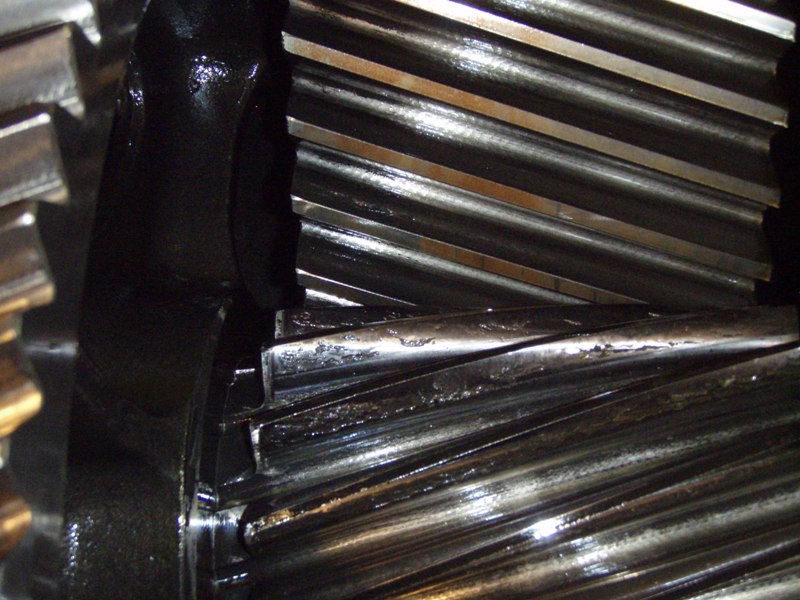

Click on images for larger view.
