Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A

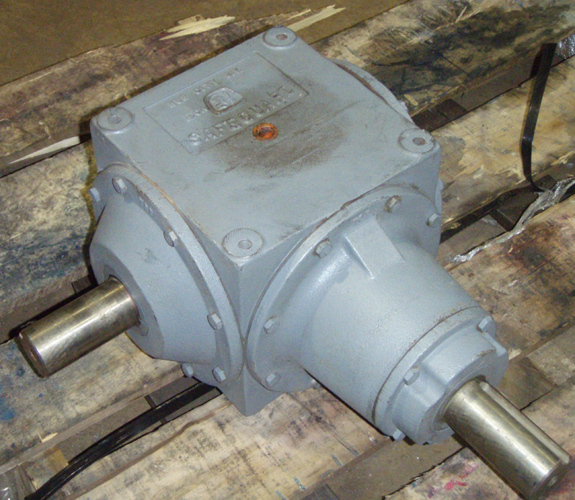

Manufacturer:      HUB CITY Our ID No.      008014
Model:      1010 Ratio:      2/1 (2:1)

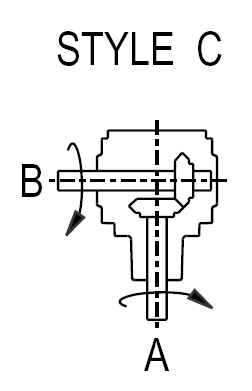

Assembly Number      0220-06312-1010 Style (Assembly)      C
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      8,924 Lb-Inches Shaft Diameters High Speed:  2.000
Low Speed:  2.000
Weight      200 Lbs Approx.
H.S. Shaft
RPM		 HP
Ratings
1750 RPM
123.9 HP
1170 RPM
84.40 HP
870 RPM
63.80 HP
Notes:
   Unused Surplus
