N A M E P L A T E       D A T A

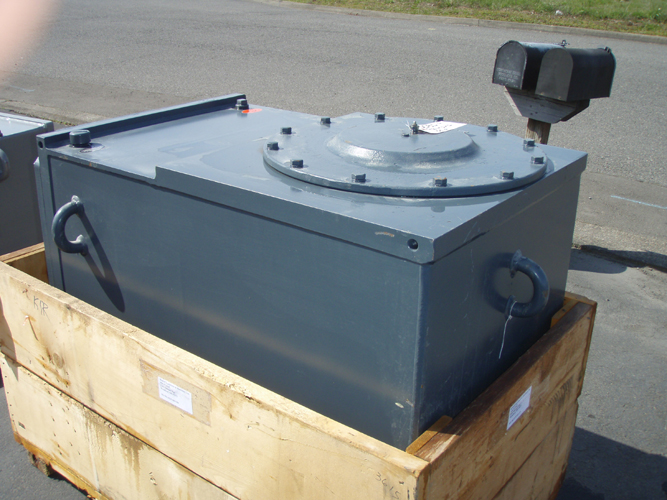

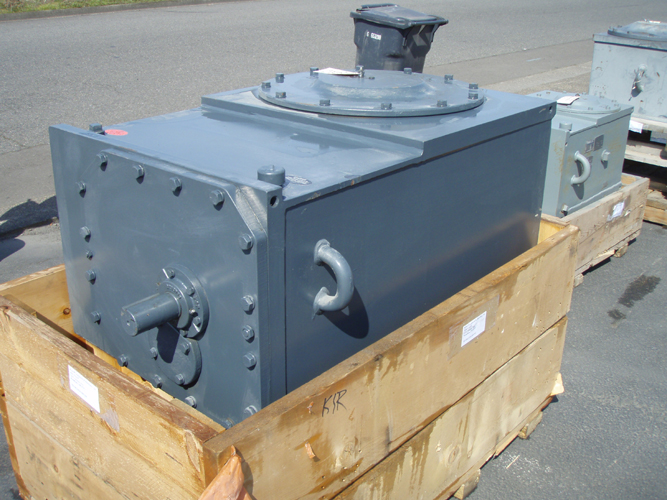

Manufacturer:      FALK RAM Right Angle Mixer Drive Our ID No.      008019
Model:      900MDXD3A
 		Ratio:      105.9
MO# or S/N      02-068272-01 Alt. S/N
IP Speed      1800 HP rating      40 Cat. Rating
OP Speed:      17 SF / SC      1.0
Date      10-02 Oil Capacity      41.2
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      146,728 Lb-Inches Shaft Diameters High Speed:  2.125
Low Speed:  7.000
Weight       4,500 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
105.9:1

17.2 RPM
40.1 HP
1430 RPM
14.1 RPM
34.8 HP
1170 RPM
11.5 RPM
30.2 HP
870 RPM
8.56 RPM
22.5 HP
720 RPM
7.09 RPM
18.6 HP
580 RPM
5.71 RPM
15.0 HP
Notes:
Condition: Unused
