- Speed Reducer Data Sheet -
HOME

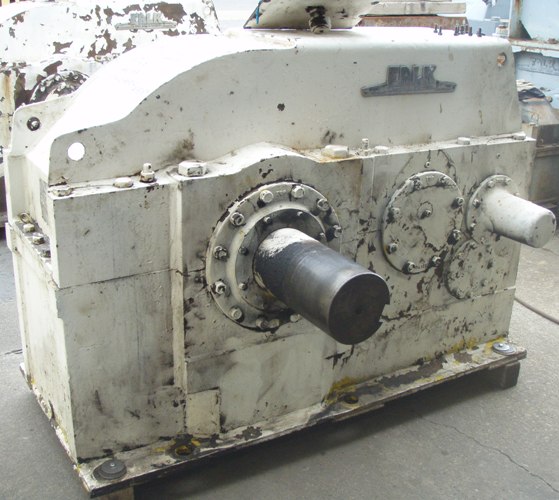

N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      008025
Model:      2145Y3C
Ratio:      58.89
MO# or S/N      7-566247-01-2 Alt. S/N
IP Speed      1750 HP rating      169 Cat. Rating
OP Speed:      29.7 SF / SC      1.51
Date       Oil Capacity      57
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      543,000 Lb-Inches Shaft Diameters High Speed:  2.250
Low Speed:  7.250
Weight      7,180 Lbs Approx. Assembly      19
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
58.89 :1

30 RPM
256 HP
1430 RPM
25 RPM
213 HP
1170 RPM
20 RPM
178 HP
870 RPM
15.0 RPM
137 HP
720 RPM
12.5 RPM
114 HP
580 RPM
10.0 RPM
94.0 HP
Notes:
Condition: Used
