Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      008029
Model:      1120YF1-A
 		Ratio:      2.731
MO# or S/N      8-165526-01 Alt. S/N
IP Speed      870 HP rating      600 Cat. Rating
OP Speed:      319 SF / SC      2.14
Date      04/81 Oil Capacity      28
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      238,000 Lb-Inches Shaft Diameters High Speed:  4.00
Low Speed:  6.000
Weight      3,750 Lbs Approx. Assembly      25
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
2.731:1

640 RPM
2420 HP
1430 RPM
520 RPM
2022 HP
1170 RPM
420 RPM
1690 HP
870 RPM
320 RPM
1294 HP
720 RPM
260 RPM
1089 HP
580 RPM
210 RPM
894 HP
Notes:
Condition: Used


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

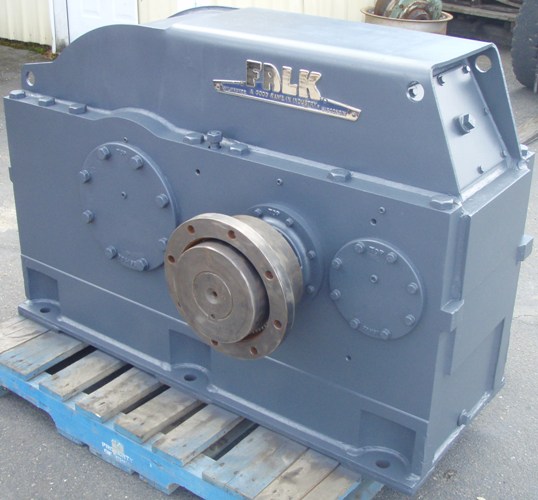

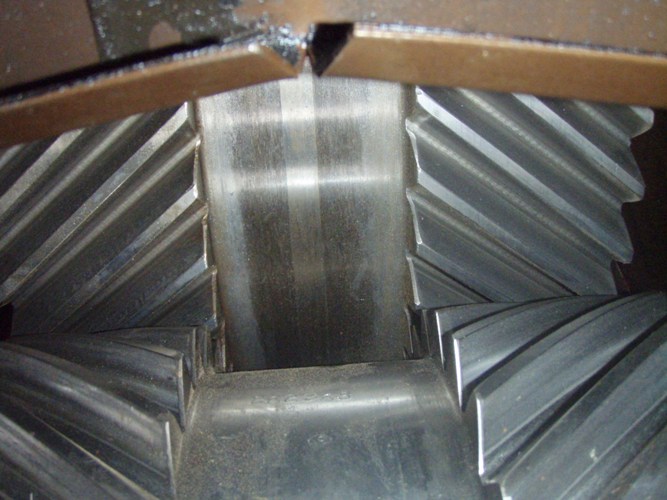

Click on images for larger view.
