- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      008030
Model:      1120YF1
 		Ratio:      2.731
MO# or S/N      78140-70140 Alt. S/N
IP Speed      900 HP rating      900 Cat. Rating
OP Speed:      330 SF / SC      1.43
Date      12/78 Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      238,000 Lb-Inches Shaft Diameters High Speed:  4.000
Low Speed:  6.00
Weight      3,750 Lbs Approx. Assembly      25
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
2.731:1

640 RPM
2420 HP
1430 RPM
780 RPM
2735 HP
1170 RPM
640 RPM
2340 HP
870 RPM
470 RPM
1851 HP
720 RPM
390 RPM
1569 HP
580 RPM
320 RPM
1263 HP
Notes:
Condition: Used


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

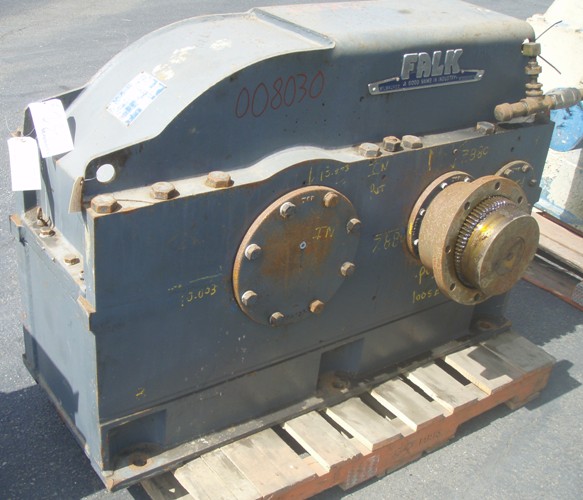

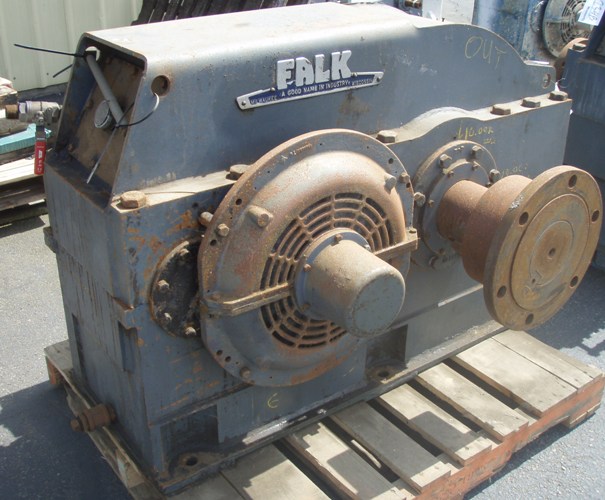

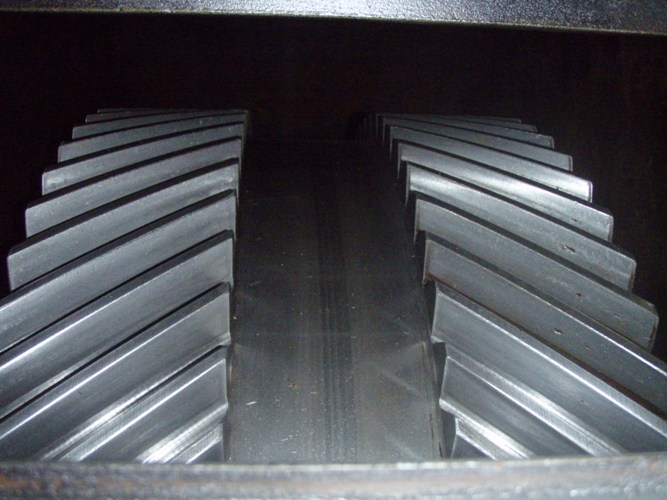

Click on images for larger view.
