Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      008033
Model:      2110Y1-LS
 		Ratio:      3.393
MO# or S/N      01-065244 Alt. S/N
IP Speed      1628 HP rating      600 Cat. Rating
OP Speed:      479.8 SF / SC      2.52
Date      12-01 Oil Capacity      20.5
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      196,000 Lb-Inches Shaft Diameters High Speed:  2.750
Low Speed:  5.500
Weight       2,600 Lbs Approx. Assembly      13
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
3.393:1

520 RPM
1606 HP
1430 RPM
420 RPM
1364 HP
1170 RPM
350 RPM
1138 HP
870 RPM
260 RPM
869 HP
720 RPM
210 RPM
731 HP
580 RPM
175 RPM
599 HP
Notes:
Condition: Used; in excellent condition.


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

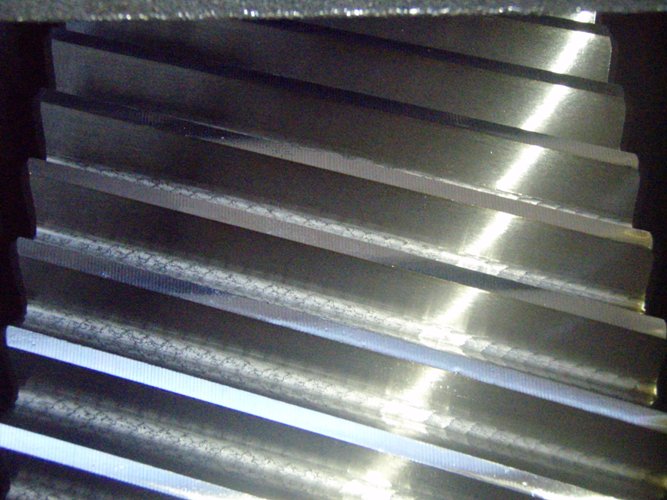

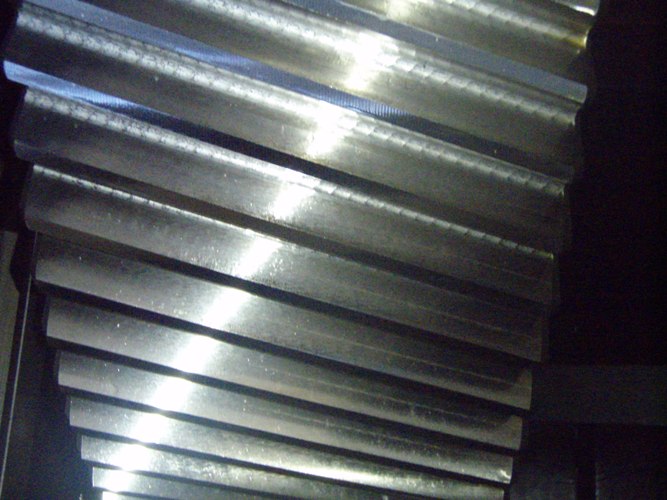

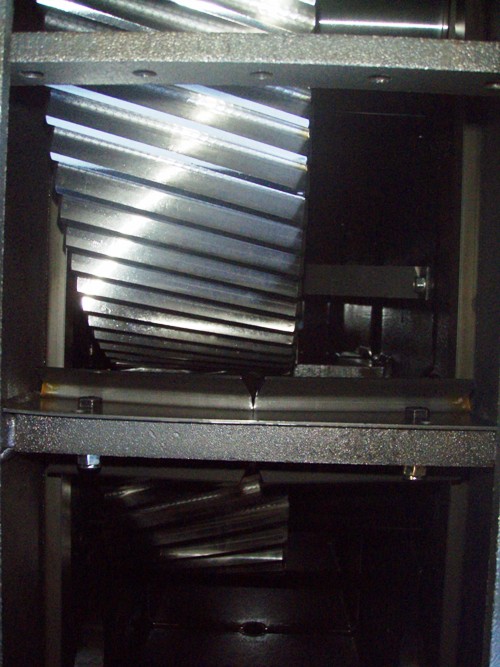

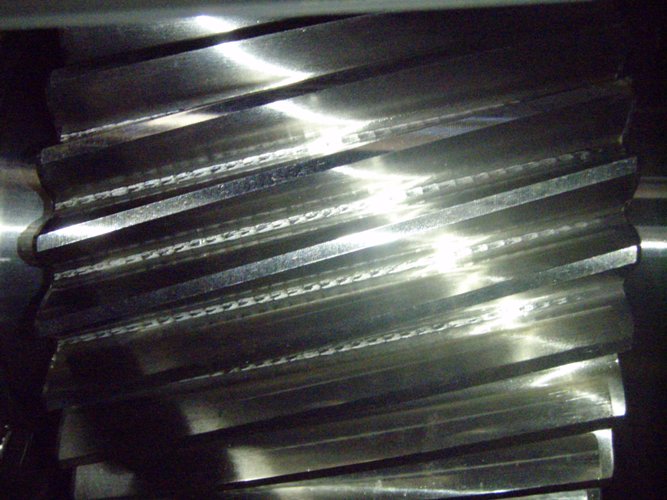

Click on images for larger view.
