- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A

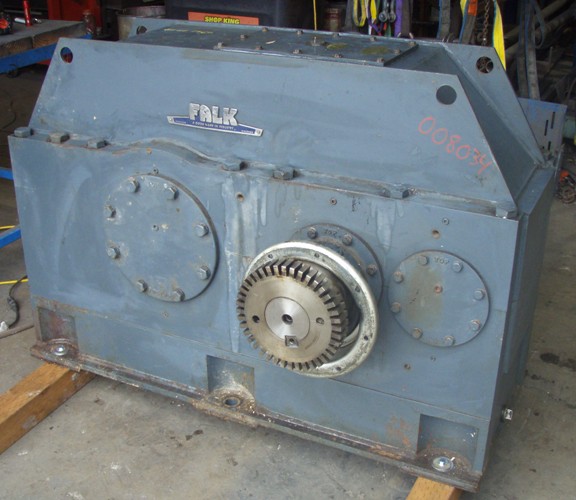

Manufacturer:      FALK Our ID No.      008034
Model:      2127Z1-S
 		Ratio:      2.784
MO# or S/N      01-077100-01 Alt. S/N
IP Speed      870 HP rating      1,000 Cat. Rating
OP Speed:      312.5 SF / SC      1.66
Date      12-00 Oil Capacity      29.5
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       Lb-Inches Shaft Diameters High Speed:  4.000
Low Speed:  6.000
Weight       3,250 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
2.784:1

640 RPM
3000 HP
1430 RPM
520 RPM
2500 HP
1170 RPM
420 RPM
2100 HP
870 RPM
320 RPM
1660 HP
720 RPM
260 RPM
1400 HP
580 RPM
210 RPM
1100 HP
Notes:
Condition:
