- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      008037
Model:      40BUIA
Ratio:      15.50
MO# or S/N      8-547077 Alt. S/N
IP Speed      1750 HP rating      5 Cat. Rating
OP Speed:      112.9 SF / SC      1.44
Date      5/85 Oil Capacity      1.5
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       Lb-Inches Shaft Diameters High Speed:  1.1250
Low Speed:  1.7500
Weight      160 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
15.50:1

117 RPM
7.22 HP
1430 RPM
95 RPM
6.74 HP
1170 RPM
78 RPM
6.06HP
870 RPM
58 RPM
5.22 HP
720 RPM
RPM
HP
580 RPM
15 RPM
4.01 HP
Notes:
Condition:


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

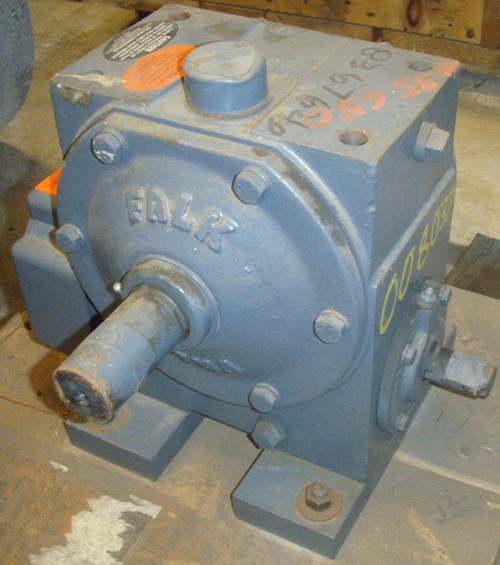

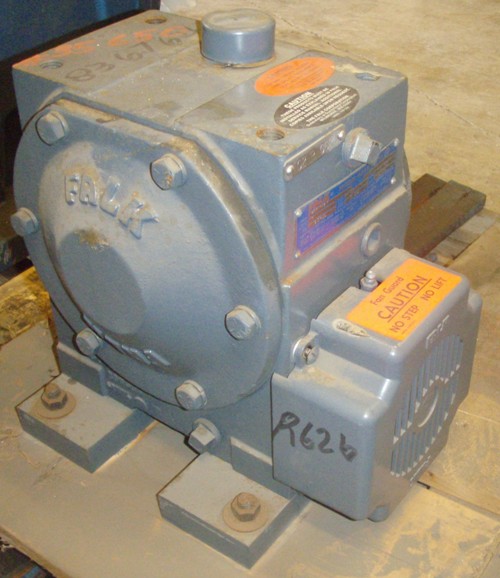

Click on images for larger view.
