Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A

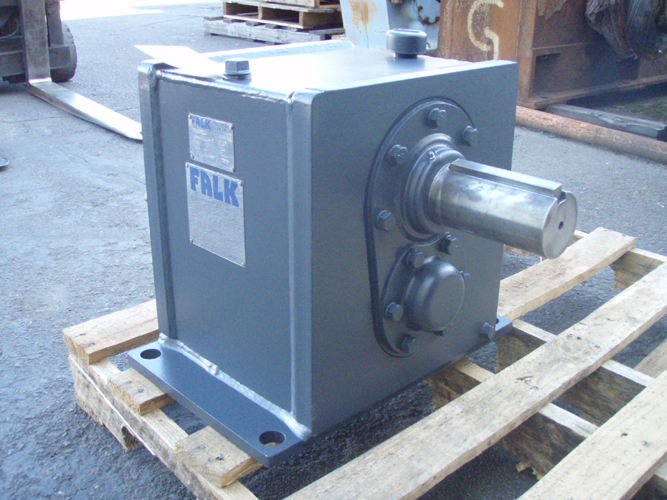

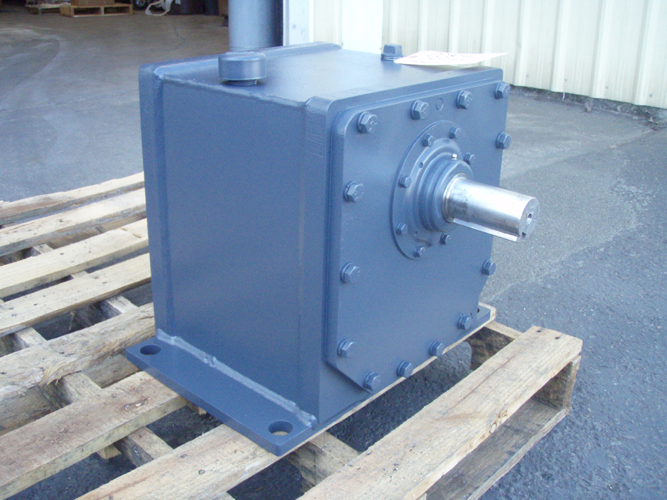

Manufacturer:      FALK Our ID No.      008046
Model:      1060FZ2A Ratio:      7.576
MO# or S/N      95-0A5530-01 Alt. S/N
IP Speed      1930 HP rating      25 Cat. Rating
OP Speed:      255 SF / SC      3.2
Date      05-93 Oil Capacity      3.2
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      21,800 Lb-Inches Shaft Diameters High Speed:  1.875
Low Speed:  2.750
Weight      340 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
7.576

230 RPM
80 HP
1430 RPM
190 RPM
68.8 HP
1170 RPM
155 RPM
59.2 HP
870 RPM
115 RPM
47.4 HP
720 RPM
95 RPM
41.1 HP
580 RPM
77 RPM
34.9 HP
Notes:
Condition:
Unused surplus
