Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME

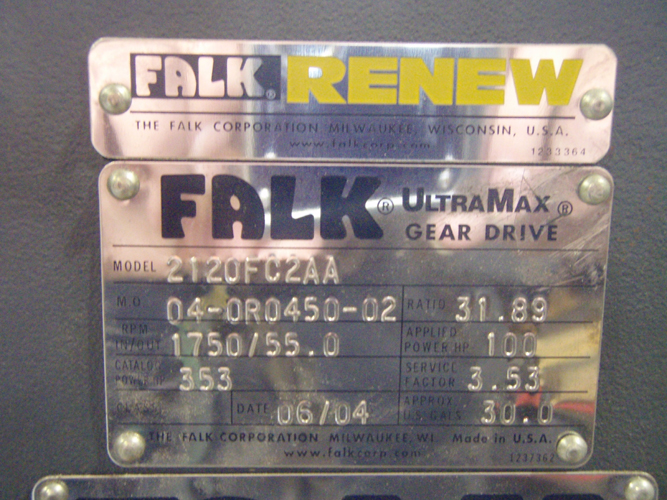

N A M E P L A T E       D A T A

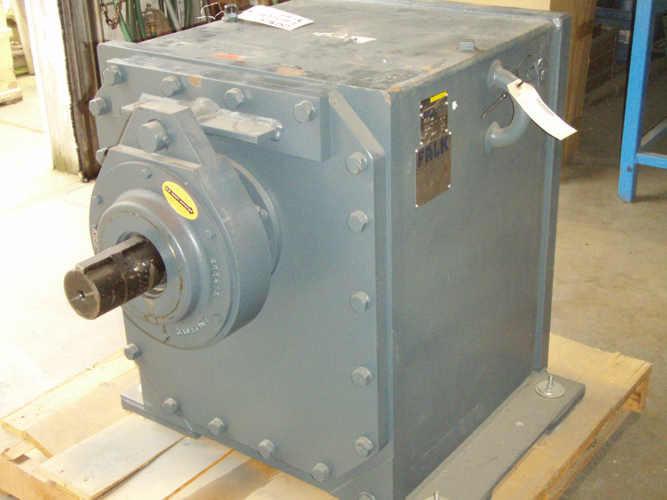

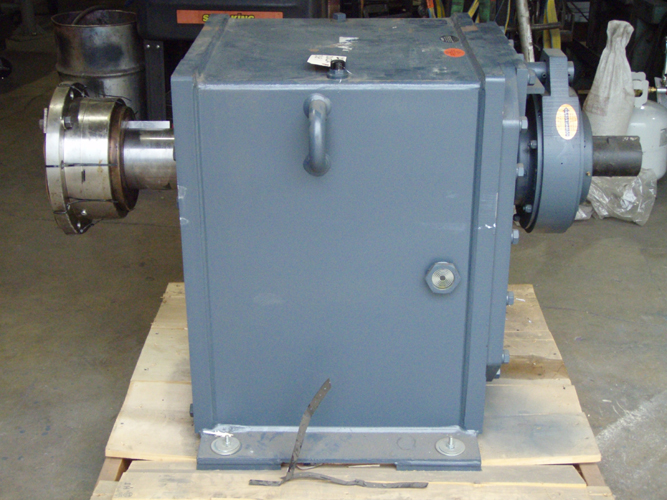

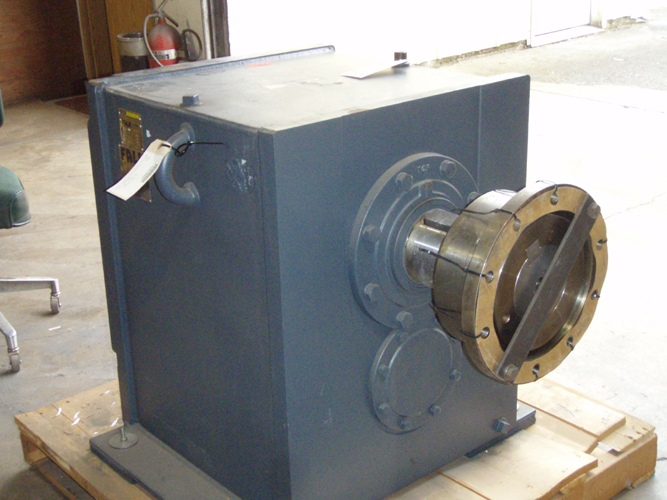

Manufacturer:      FALK Our ID No.      008057
Model:      2120FC2AA Ratio:      31.89
MO# or S/N      04-0R0450-02 Alt. S/N
IP Speed      1750 HP rating      100 Cat. Rating      353
OP Speed:      55 SF / SC      3.53
Date      6-04 Oil Capacity      30
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      405,000 Lb-Inches Shaft Diameters High Speed:  3.250
Low Speed:  5.500
Weight      2,210 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
31.89

56 RPM
353 HP
1430 RPM
45 RPM
293 HP
1170 RPM
37 RPM
241 HP
870 RPM
28 RPM
180 HP
720 RPM
22 RPM
149 HP
580 RPM
18 RPM
120 HP
Notes:
Condition:
Rebuilt by Falk-Renew
