- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      Dodge Our ID No.      008059
Model:      TXM900 Ratio:      30.77
MO# or S/N      014203 UR Alt. S/N      2119565
IP Speed      1750 HP rating      60 Cat. Rating      97.8
OP Speed:      57 SF / SC      1.5
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      108,000 Lb-Inches Shaft Diameters High Speed:  2.750
Low Speed:  4.500
Weight      1,750 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
30.77

55.8 RPM
97.8 HP
1430 RPM
46.2 RPM
81.7 HP
1170 RPM
37.3 RPM
66.9 HP
870 RPM
27.7 RPM
50.4 HP
720 RPM
22.9 RPM
42.2 HP
580 RPM
18.5 RPM
34.3 HP
Notes:
Condition:
Rebuilt
Backstop on HSS, possible replacement for Falk 100FC2 / 100FZ2 / 1100FC2 / 1100FZ2

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

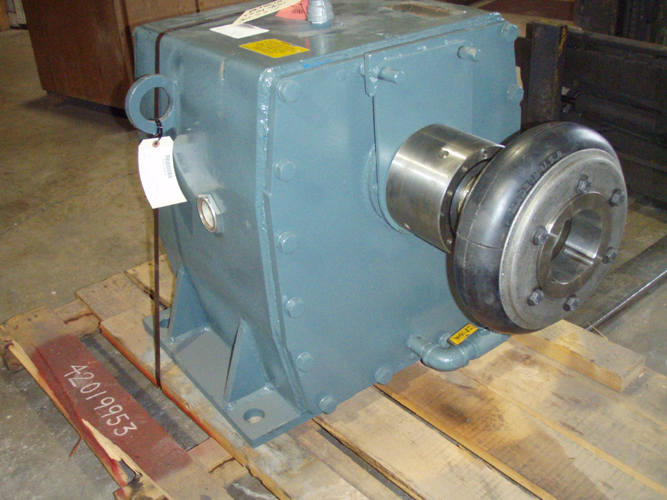

Click on images for larger view.
