- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      Dodge Our ID No.      008063
Model:      TXM1200 Ratio:      31.55
MO# or S/N      014486 Alt. S/N      2119565
IP Speed      1750 HP rating       Cat. Rating      212
OP Speed:      55 SF / SC
Date       Oil Capacity      43
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      230,500 Lb-Inches Shaft Diameters High Speed:  3.500
Low Speed:  5.500
Weight      3,500 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
31.55

55.8 RPM
212 HP
1430 RPM
46.2 RPM
178 HP
1170 RPM
37.3 RPM
145 HP
870 RPM
27.7 RPM
111 HP
720 RPM
22.9 RPM
93.3 HP
580 RPM
18.5 RPM
76 HP
Notes:
Condition:
Rebuilt
Possible replacement for a Falk 130FC2 /130FZ2 / 1130FC2 / 1130FZ2

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

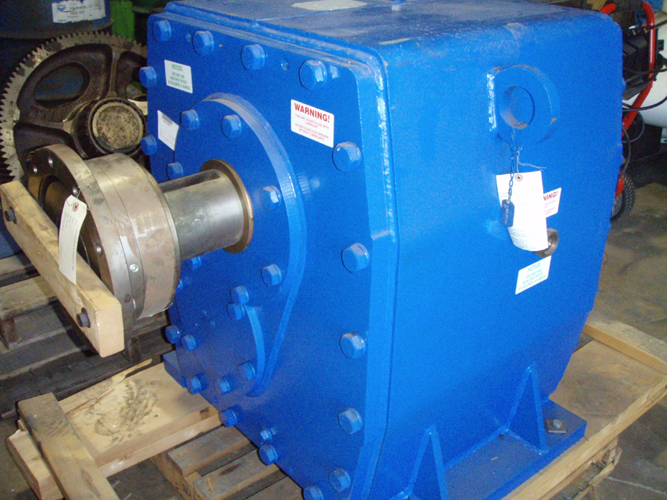

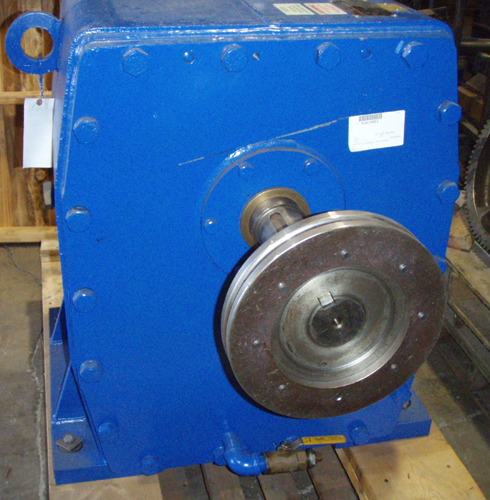

Click on images for larger view.
