Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      008068
Model:      M1190DHC1A-5.733-LD0016 Ratio:      5.733
MO# or S/N      08-065679-01 Alt. S/N
IP Speed      1750 HP rating      1300 BHP Cat. Rating      2006
OP Speed:      305 SF / SC      1.54
Date      12/08 Oil Capacity      25
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      414,000 Lb-Inches Shaft Diameters High Speed:  3.7402 (95mm)
Low Speed:  6.6926 (170mm)
Weight      4,200 Lbs Approx. Assembly      LD0016
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal ratings
with cooling tubes
1750 RPM
5.733

313 RPM
2006 HP
2493 HP
1430 RPM
255 RPM
1639 HP
2304 HP
1170 RPM
209 RPM
1361 HP
2127 HP
870 RPM
155 RPM
1037 HP
1888 HP
Notes:
Condition:
Unused Surplus
HS Coupling 1120T
Low Speed Coupling 1170G

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

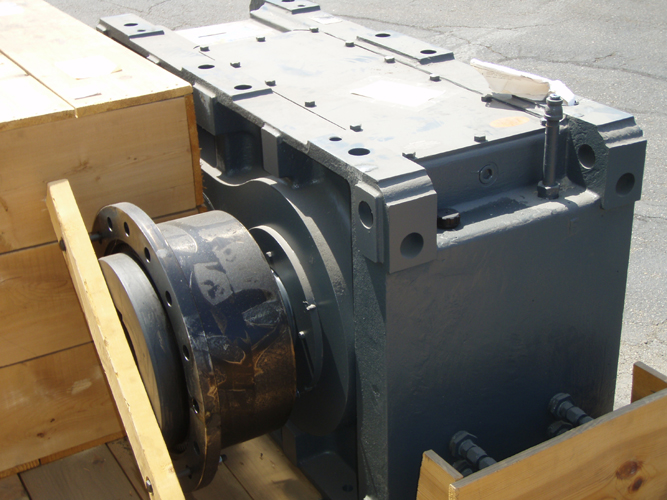

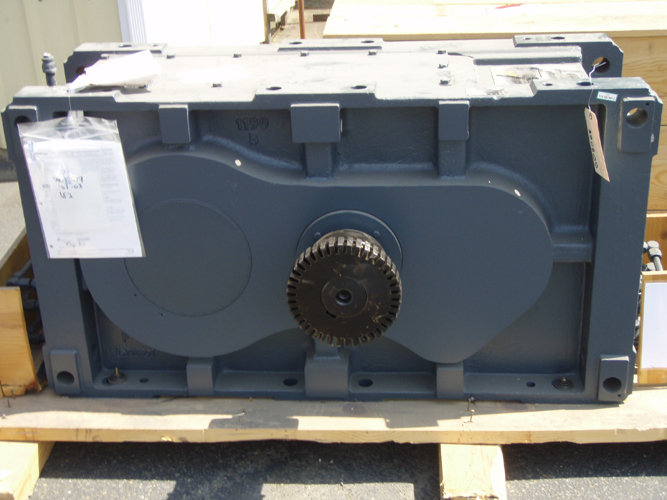

Click on images for larger view.
