- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      008116
Model:      2100Y1LS   2100Y1L   2100Y1 Ratio:      7.467
MO# or S/N      74140700 Alt. S/N
IP Speed      1170 HP rating      100 Cat. Rating      295
OP Speed:      155 SF / SC      2.4
Date      5/74 Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      111,000 Lb-Inches Shaft Diameters High Speed:  3.000
Low Speed:  5.000
Weight      2,500 Lbs Approx. Assembly      2
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
7.467

230 RPM
414 HP
1430 RPM
190 RPM
350 HP
1170 RPM
155 RPM
295 HP
870 RPM
115 RPM
229 HP
720 RPM
95 RPM
194 HP
580 RPM
77 RPM
160 HP
Notes:
Condition:
Used, gearing like new, needs rebuild

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

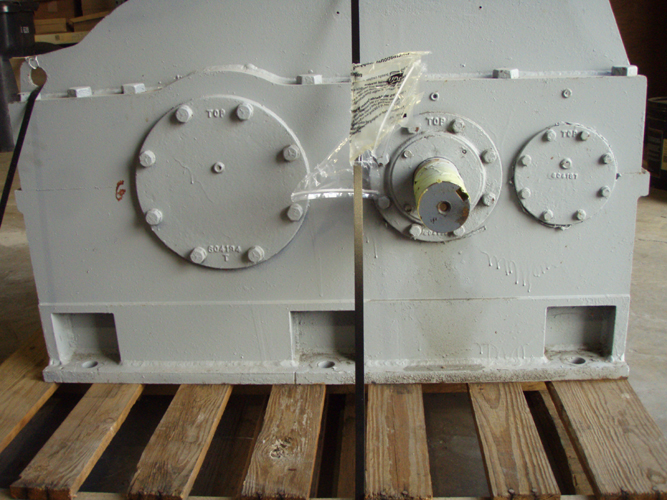

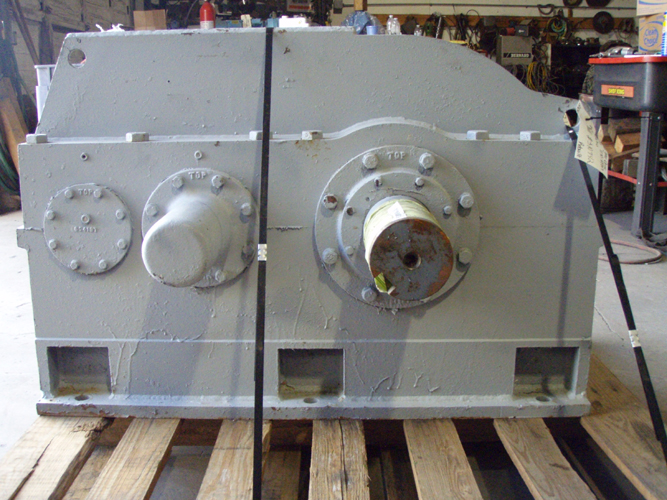

Click on images for larger view.
