Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

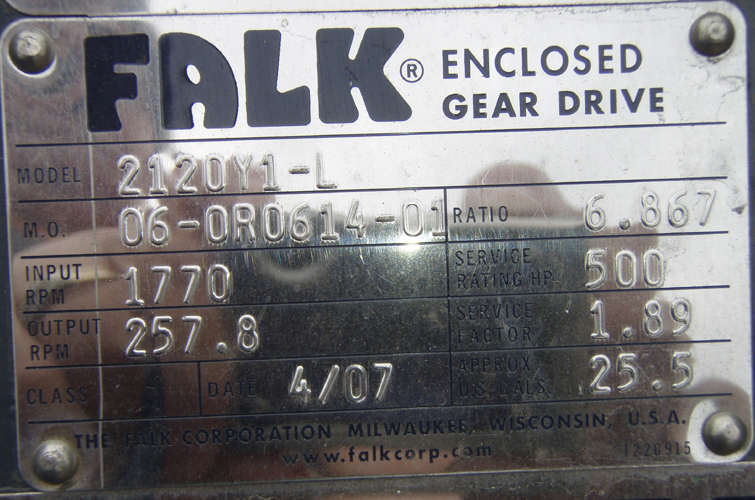

N A M E P L A T E       D A T A
Manufacturer:      FALK REXNORD Our ID No.      008122
Model:      2120Y1L Ratio:      6.867
MO# or S/N      06-0R0614-01 Alt. S/N
IP Speed      1770 HP rating      500 Cat. Rating      See Below
OP Speed:      257.8 SF / SC      1.89
Date      4/07 Oil Capacity      25.5
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      188,000 Lb-Inches Shaft Diameters High Speed:  4.000
Low Speed:  6.000
Weight      4,700 Lbs Approx. Assembly      2
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal ratings
with 2 cooling fans
1750 RPM
6.867

255 RPM
759 HP
Exceeds Mechanical
1430 RPM
210 RPM
643 HP
Exceeds Mechanical
1170 RPM
170 RPM
544 HP
Exceeds Mechanical
870 RPM
130 RPM
423 HP
Exceeds Mechanical
720 RPM
105 RPM
360 HP
Exceeds Mechanical
580 RPM
85 RPM
298 HP
Exceeds Mechanical
Notes:
Condition: UNUSED SURPLUS



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci



Click on images for larger view.
