Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      FALK REXNORD Our ID No.      008123
Model:      2135Y1LD Ratio:      2.970
MO# or S/N      01-060025-02 Alt. S/N
IP Speed      590 HP rating      600 Cat. Rating      See Below
OP Speed:      198.7 SF / SC      1.83
Date      3/02 Oil Capacity      37.0
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      280,000 Lb-Inches Shaft Diameters High Speed:  4.500
Low Speed:  6.500
Weight      4,700 Lbs Approx. Assembly      2
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal ratings
with cooling tubes
1750 RPM
2.970

589 RPM
2,941 HP
Exceeds Mechanical
1430 RPM
481 RPM
2,468 HP
Exceeds Mechanical
1170 RPM
394 RPM
2,064 HP
Exceeds Mechanical
870 RPM
293 RPM
1,581 HP
Exceeds Mechanical
720 RPM
242 RPM
1,332 HP
Exceeds Mechanical
580 RPM
195 RPM
1,098 HP
Exceeds Mechanical
Notes:
Condition: UNUSED SURPLUS
YOUTUBE


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

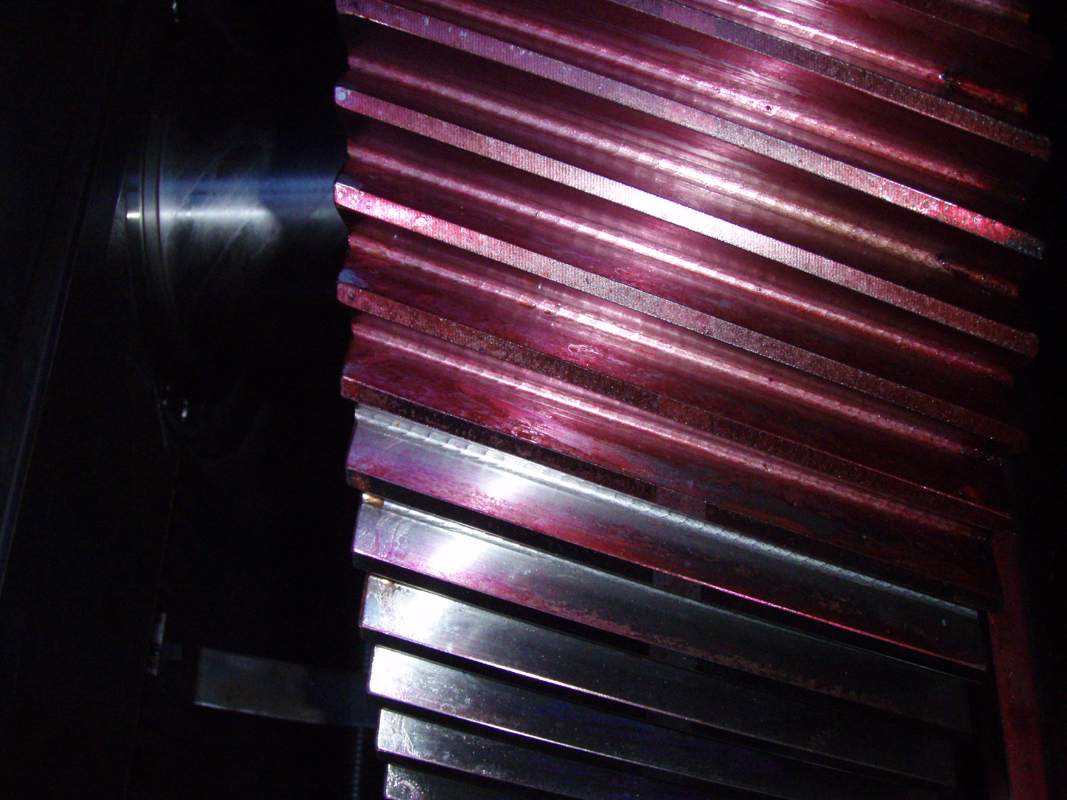

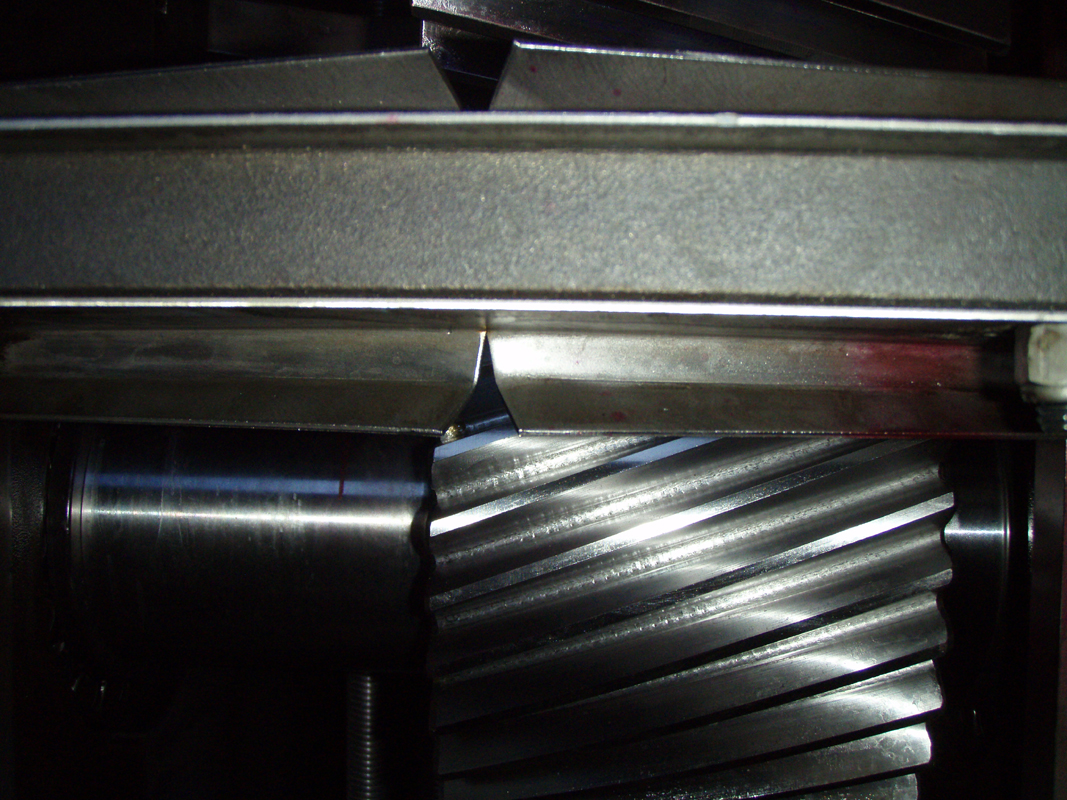

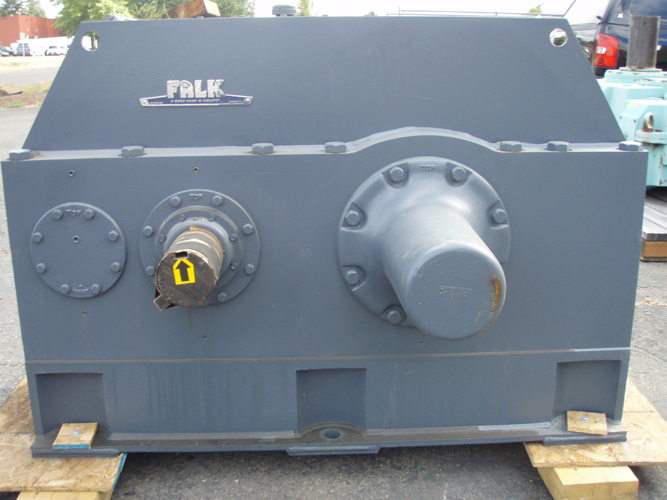

Click on images for larger view.
