- Speed Reducer Data Sheet -

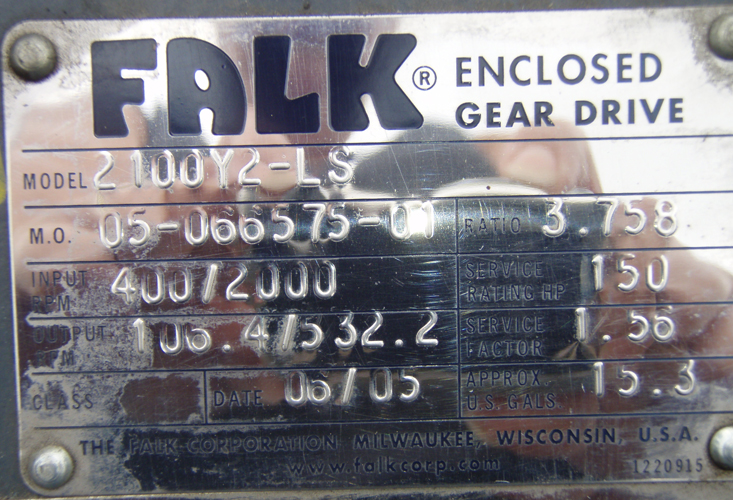

N A M E P L A T E       D A T A
Manufacturer:      FALK REXNORD Our ID No.      008124
Model:      2100Y1LS Ratio:      3.758
MO# or S/N      05-066575-01 Alt. S/N
IP Speed      400/2000 HP rating      150 Cat. Rating
OP Speed:      106.4/532.2 SF / SC      1.56
Date      6/05 Oil Capacity      15.3
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      122,000 Lb-Inches Shaft Diameters High Speed:    3.000

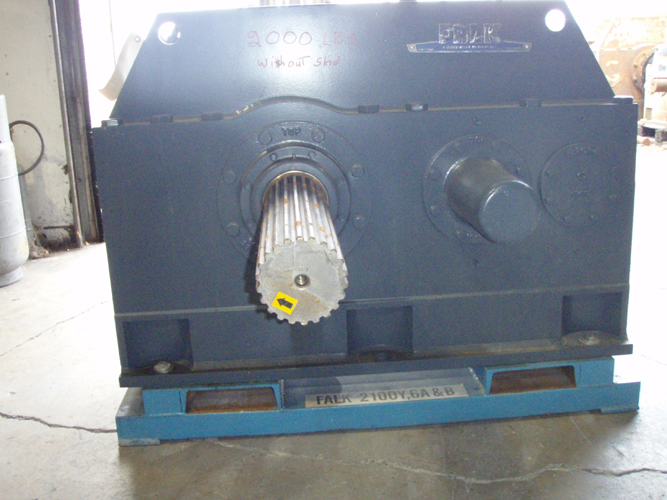

Low Speed:    SPLINE, Can change to standard shaft
Weight      2400 Lbs Approx. Assembly      19
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal
Ratings
W/O Cooling
1750 RPM
3.758

470 RPM
902 HP
284 HP
1430 RPM
380 RPM
752 HP
360 HP
1170 RPM
310 RPM
626 HP
406 HP
870 RPM
235 RPM
478 HP
Exceeds Mechanical
720 RPM
190 RPM
401 HP
Exceeds Mechanical
580 RPM
155 RPM
328 HP
Exceeds Mechanical
Notes:
Condition:
Unused Surplus, can replace splined shaft with standard shaft.
