Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A

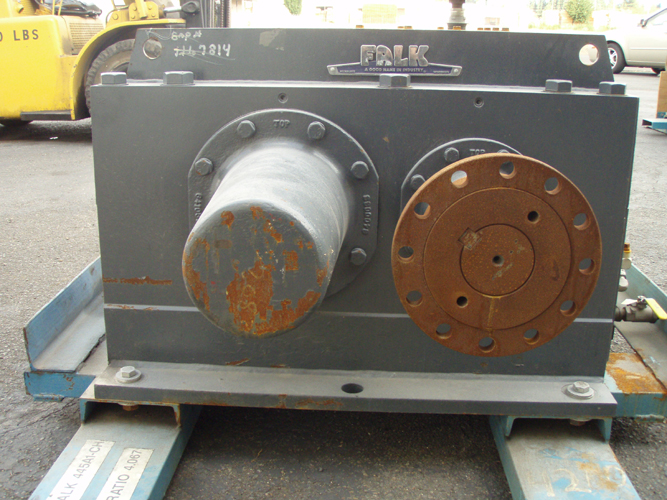

Manufacturer:      FALK REXNORD Our ID No.      008125
Model:      445A1CR Ratio:      4.067
MO# or S/N      06-066787-01 Alt. S/N
IP Speed      1170 HP rating      1000 Cat. Rating      See Below
OP Speed:      287.7 SF / SC      2.10
Date      7/06 Oil Capacity      22.0
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      407,000 Lb-Inches Shaft Diameters High Speed:  4.500
Low Speed:  6.500
Weight      4,500 Lbs Approx. Assembly      1
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal ratings
with cooling tubes
1750 RPM
4.067

420 RPM
2,780 HP
Exceeds Mechanical
1430 RPM
350 RPM
2,414 HP
Exceeds Mechanical
1170 RPM
280 RPM
2,097 HP
Exceeds Mechanical
870 RPM
210 RPM
1,705 HP
Exceeds Mechanical
720 RPM
175 RPM
1,442 HP
Exceeds Mechanical
580 RPM
140 RPM
1,178 HP
Exceeds Mechanical
Notes:
Condition: Unused Surplus
