- Speed Reducer Data Sheet -

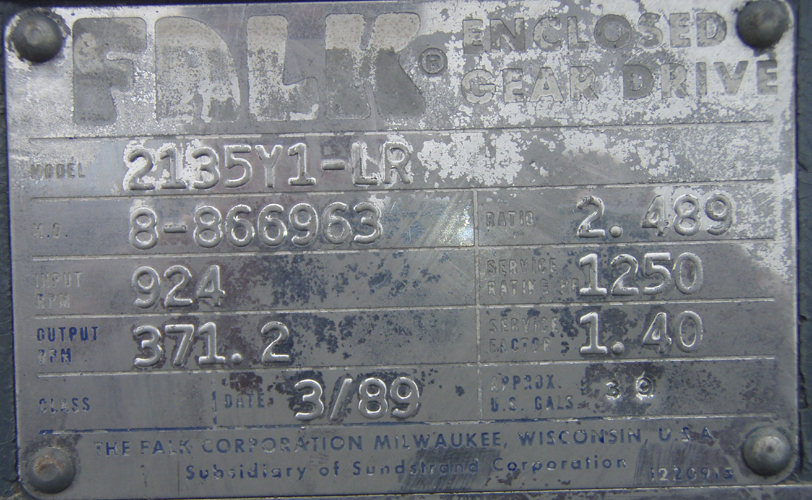

N A M E P L A T E       D A T A
Manufacturer:      FALK REXNORD Our ID No.      008126
Model:      2135Y1LR Ratio:      2.489
MO# or S/N      8-866963 Alt. S/N
IP Speed      924 HP rating      1250 Cat. Rating      See Below
OP Speed:      371.2 SF / SC      1.40
Date      3/89 Oil Capacity      39
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      283,000 Lb-Inches Shaft Diameters High Speed:  4.500
Low Speed:  6.500
Weight      3,500 Lbs Approx. Assembly      2
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal ratings
with 2 cooling fans
1430 RPM
2.489

575 RPM
2585 HP
Exceeds Mechanical
1170 RPM
470 RPM
2162 HP
Exceeds Mechanical
870 RPM
350 RPM
1658 HP
Exceeds Mechanical
720 RPM
290 RPM
1397 HP
Exceeds Mechanical
580 RPM
235 RPM
1148 HP
Exceeds Mechanical
Notes:
Condition: Unused Surplus YOUTUBE
