- Speed Reducer Data Sheet -

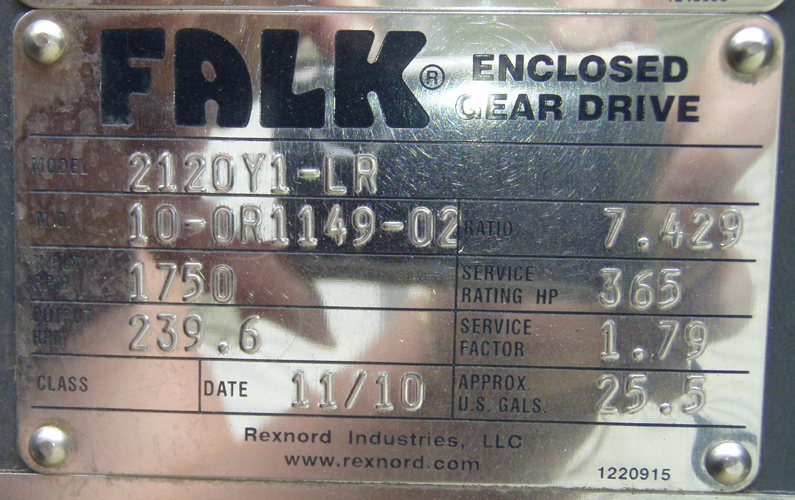

N A M E P L A T E       D A T A
Manufacturer:      FALK REXNORD Our ID No.      008127
Model:      2120Y1LR Ratio:      7.429
MO# or S/N      10-0R1149-02 Alt. S/N
IP Speed      1750 HP rating      365 Cat. Rating      See Below
OP Speed:      239.6 SF / SC      1.79
Date      11/10 Oil Capacity      25.5
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      175,000 Lb-Inches Shaft Diameters High Speed:  4.000
Low Speed:  6.000
Weight      4,000 Lbs Approx. Assembly      2
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal ratings
with 2 cooling fans
1750 RPM
7.429

230 RPM
655 HP
Exceeds Mechanical
1430 RPM
190 RPM
555 HP
Exceeds Mechanical
1170 RPM
155 RPM
470 HP
Exceeds Mechanical
870 RPM
115 RPM
365 HP
Exceeds Mechanical
720 RPM
95 RPM
310 HP
Exceeds Mechanical
580 RPM
77 RPM
256 HP
Exceeds Mechanical
Notes:
Condition: Rebuilt by Falk-Renew
