Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

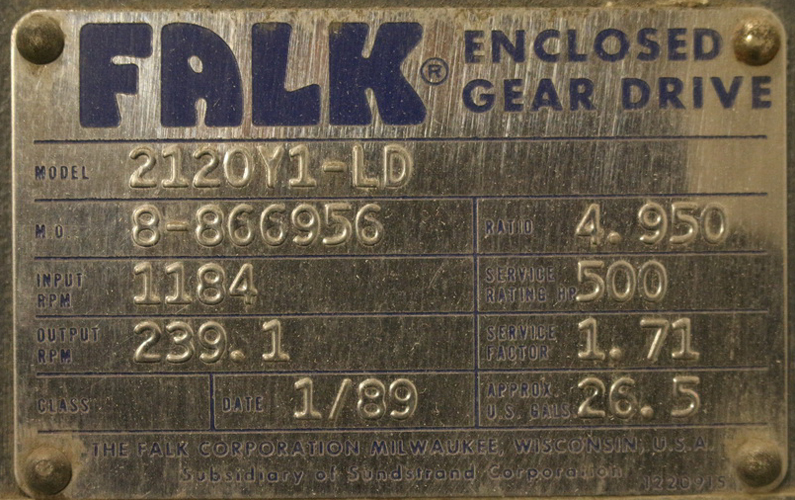

N A M E P L A T E       D A T A
Manufacturer:      FALK REXNORD Our ID No.      008130
Model:      2120Y1LD Ratio:      4.950
MO# or S/N      8-866956 Alt. S/N
IP Speed      1184 HP rating      500 Cat. Rating      See Below
OP Speed:      239.1 SF / SC      1.71
Date      1/89 Oil Capacity      26.5
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      209,000 Lb-Inches Shaft Diameters High Speed:    4.000
Low Speed:    6.000
Weight      3,500 Lbs Approx. Assembly      2
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal
Ratings
W/O Cooling
1750 RPM
4.950

350 RPM
1174 HP
451 HP
1430 RPM
280 RPM
998 HP
506 HP
1170 RPM
230 RPM
847 HP
535 HP
870 RPM
175 RPM
663 HP
593 HP
720 RPM
140 RPM
564 HP
577 HP
580 RPM
115 RPM
470 HP
Exceeds Mechanical
Notes:
Condition: Unused Surplus
