Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

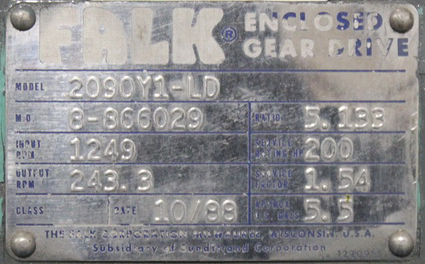

N A M E P L A T E       D A T A

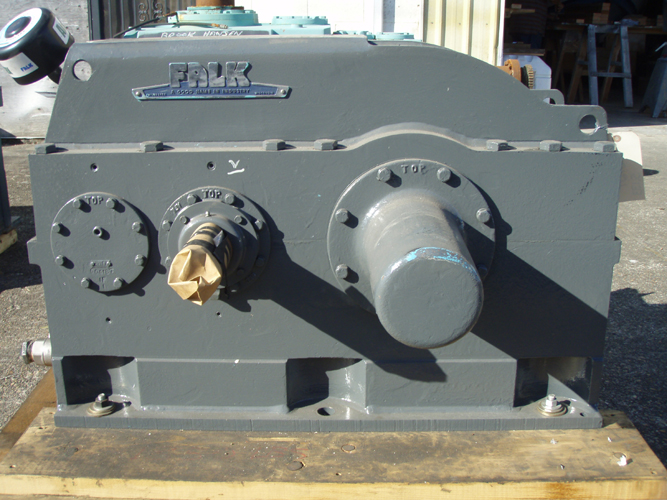

Manufacturer:      FALK REXNORD Our ID No.      008131
Model:      2090Y1LD Ratio:      5.133
MO# or S/N      8-866029 Alt. S/N
IP Speed      1249 HP rating      200 Cat. Rating
OP Speed:      243.3 SF / SC      1.54
Date      10/88 Oil Capacity      5.5
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      84,000 Lb-Inches Shaft Diameters High Speed:    2.750
Low Speed:    4.500
Weight      1400 Lbs Approx. Assembly      2
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal
Ratings
W/O Cooling
1750 RPM
5.133

1750 RPM
458 HP
232 HP
1430 RPM
280 RPM
388 HP
280 HP
1170 RPM
210 RPM
328 HP
210 HP
870 RPM
175 RPM
254 HP
244 HP
720 RPM
140 RPM
216 HP
Exceeds Mechanical Ratings
580 RPM
115 RPM
179 HP
Exceeds Mechanical Ratings
Notes:
Condition:
Unused Surplus YOUTUBE
