- Speed Reducer Data Sheet -
HOME

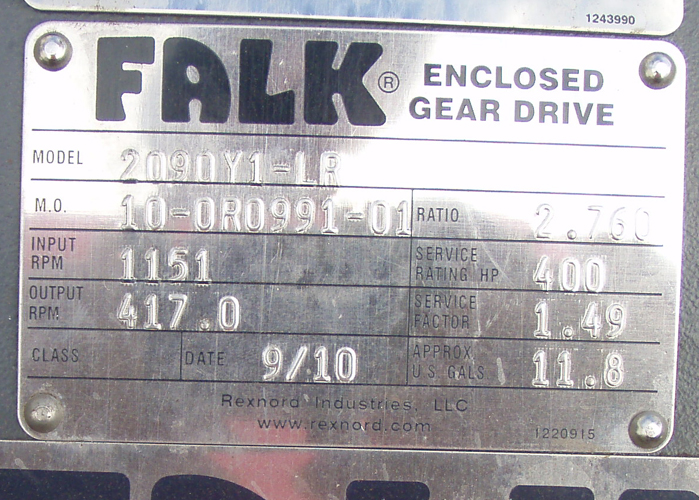

N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      008133
Model:      2090Y1LR Ratio:      2.760
MO# or S/N      10-0R0991-01 Alt. S/N
IP Speed      1151 HP rating      400 Cat. Rating      596
OP Speed:      417.0 SF / SC      1.49
Date      9/10 Oil Capacity      11.8
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      80,000 Lb-Inches Shaft Diameters High Speed:  2.750
Low Speed:  4.500
Weight      2000 Lbs Approx. Assembly      2
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
2.760:1

640 RPM
806 HP
1430 RPM
520 RPM
700 HP
1170 RPM
420 RPM
608 HP
870 RPM
320 RPM
494 HP
720 RPM
260 RPM
417 HP
580 RPM
210 RPM
335 HP
Notes:
Condition:
Factory rebuilt!!
