Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

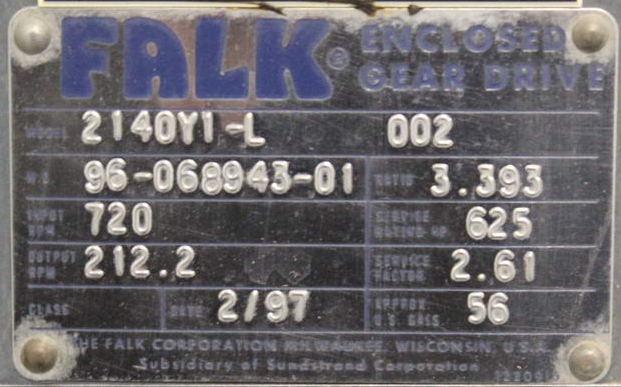

N A M E P L A T E       D A T A
Manufacturer:      FALK REXNORD Our ID No.      008134
Model:      2140Y1L Ratio:      3.393
MO# or S/N      96-068943-01 Alt. S/N
IP Speed      720 HP rating      625 Cat. Rating      See Below
OP Speed:      212.2 SF / SC      2.61
Date      2/97 Oil Capacity      56
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      410,000 Lb-Inches Shaft Diameters High Speed:    4.500
Low Speed:    7.250
Weight      7,800 Lbs Approx. Assembly      19
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal
Ratings
W/O Cooling
1750 RPM
3.393

520 RPM
3355 HP
234 HP
1430 RPM
420 RPM
2871 HP
627 HP
1170 RPM
350 RPM
2452 HP
872 HP
870 RPM
260 RPM
1935 HP
1077 HP
720 RPM
210 RPM
1633 HP
1144 HP
580 RPM
175 RPM
1341 HP
1192 HP
Notes:

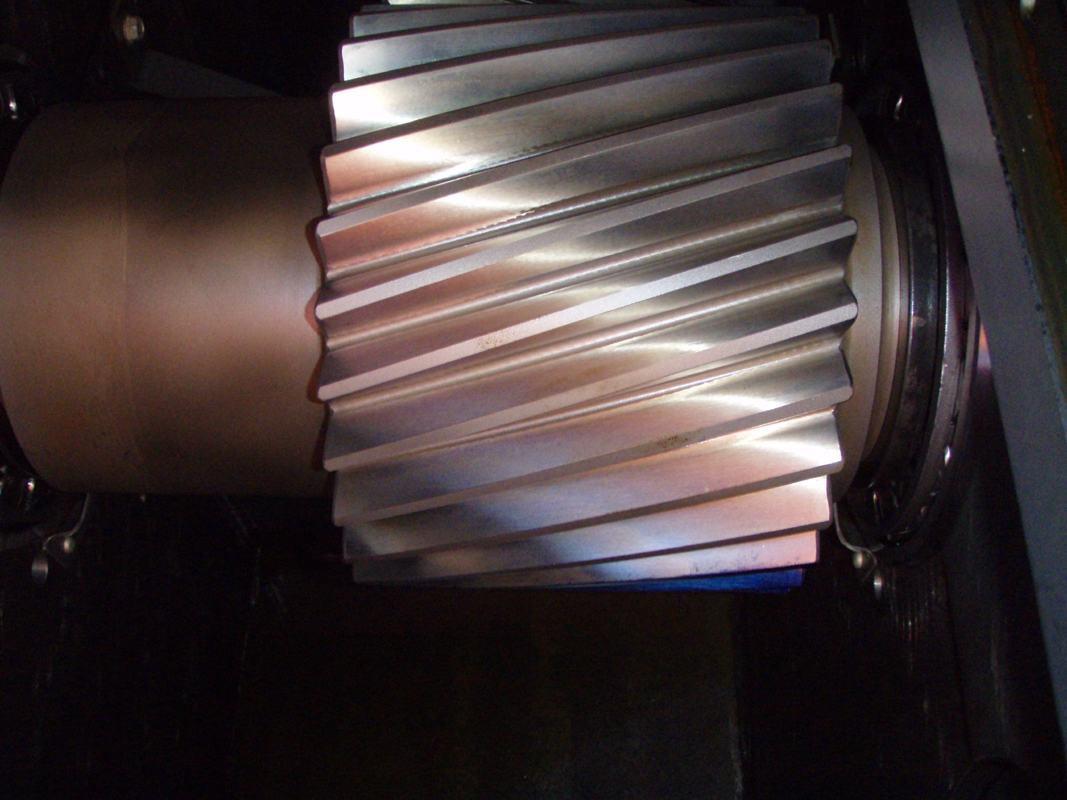

Condition: Rebuilt - looks like new gearing
