Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

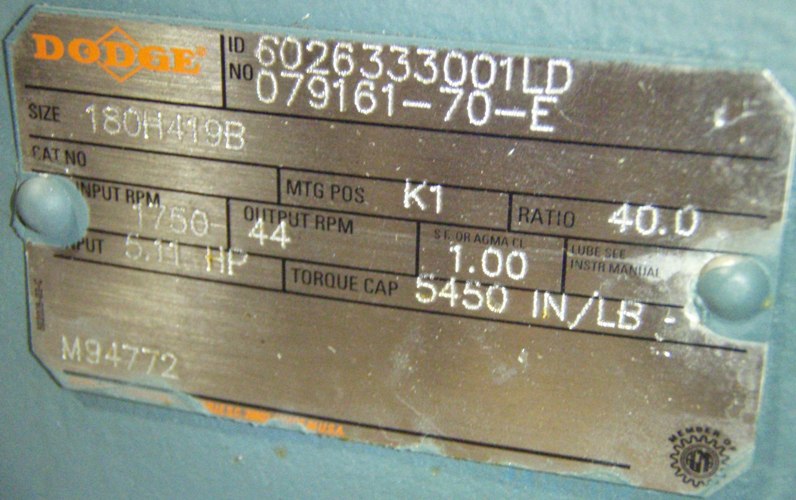

N A M E P L A T E       D A T A
Manufacturer:      DODGE TIGEAR
     MASTER XL, MASTER PT
     RELIANCE

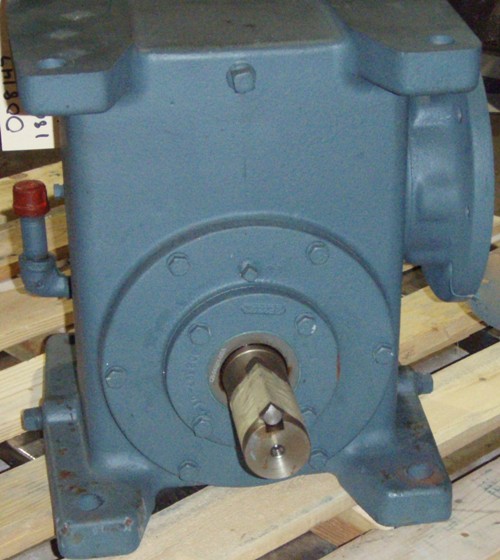

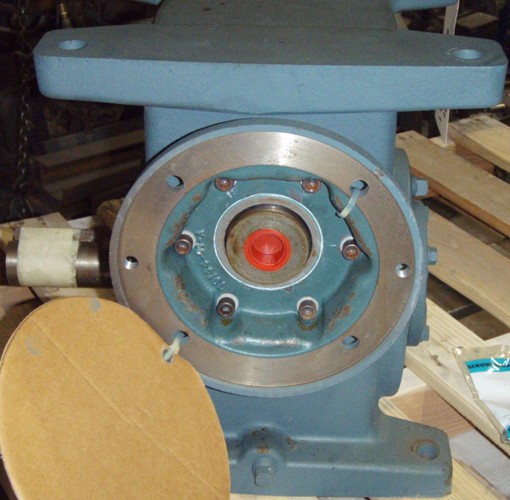

     Speed Reducer 		Our ID No.      008147
Model No:      180H419B040
     180H419B 		Ratio:      40
S/N      6026333001LD
     079161-70-E      M94772 		Center Distance      4.19
IP Speed      1750 HP rating      5.11
OP Speed:      44 SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      5,450 Lb-Inches Shaft Diameters High Speed:  180TC
Low Speed:  1.875
Weight      210 Lbs Approx. Assembly      K-1
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
40 :1

44 RPM
5.11 HP
1170 RPM
29 RPM
4.50 HP
870 RPM
22 RPM
4.02 HP
Notes:
   UNUSED SURPLUS

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci


Click on images for larger view.
