- Speed Reducer Data Sheet -

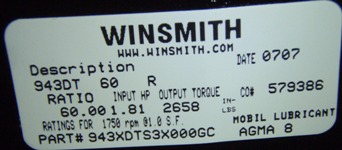

N A M E P L A T E       D A T A

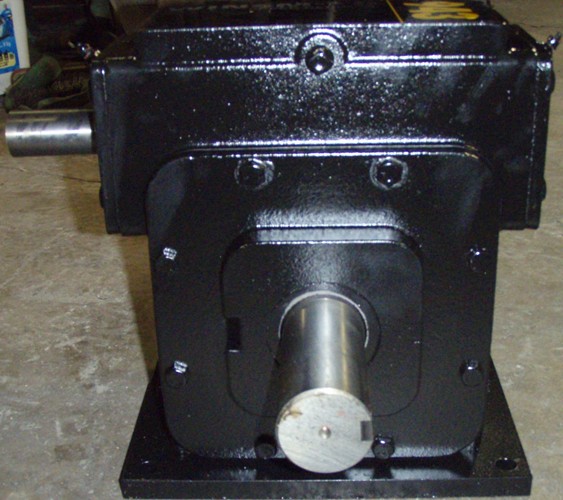

Manufacturer:      WINSMITH WORM GEAR REDUCER Our ID No.       008156
Model:      943DT Ratio:      60
S/N      943XDTS3X000GC Center Distance      4.25
IP Speed      1750 HP rating      1.81
OP Speed:      29 SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      2,658 Lb-Inches Shaft Diameters High Speed:  1.250
Low Speed:  2.000
Weight      163 Lbs Approx. Assembly      R
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
60:1

29 RPM
1.81 HP
1170 RPM
RPM
HP
Notes:     UNUSED SURPLUS
