- Speed Reducer Data Sheet -
HOME

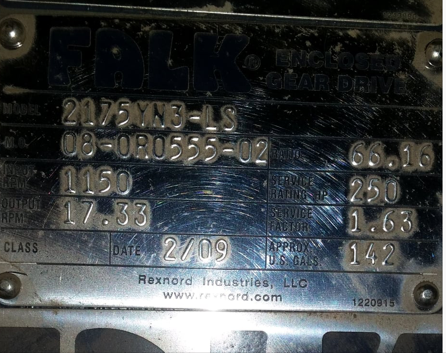

N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      008202
Model:      2175YN3-LS 2175YN3 Ratio:      66.16
MO# or S/N      08-0R0555-02 Alt. S/N
IP Speed      1150 HP rating      250 Cat. Rating      408
OP Speed:      17.33 SF / SC      1.63
Date      2/09 Oil Capacity      142
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      1,484,000 Lb-Inches Shaft Diameters High Speed:  3.250
Low Speed:  9.250
Weight      16,000 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
66.16

25 RPM
586 HP
1430 RPM
20 RPM
494 HP
1170 RPM
16.5 RPM
408 HP
870 RPM
12.5 RPM
307 HP
720 RPM
10.0 RPM
256 HP
580 RPM
8.3 RPM
207 HP
Notes:
Condition: REBUILT
