- Speed Reducer Data Sheet -
|
|

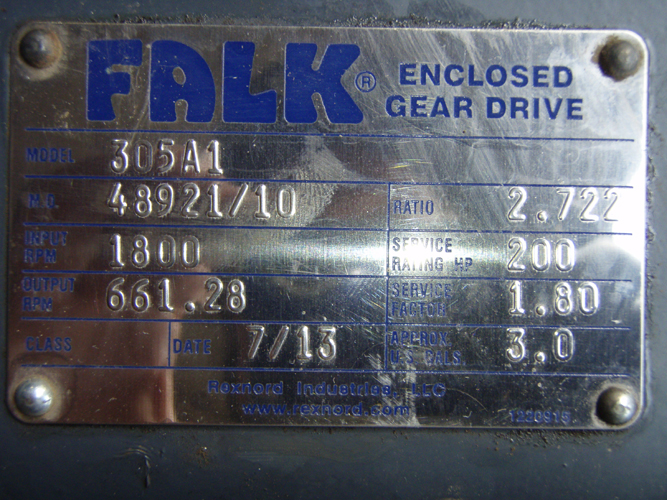

N A M E P L A T E D A T A
|
|
Manufacturer:
|
FALK
|
Our ID No.
|
008214
|
|
Model:
|
305A1
|
Ratio:
|
2.722
|
|
MO# or S/N
|
48921/10
|
Alt. S/N
|
|
|
IP Speed
|
1800
|
HP rating
|
200
|
Cat. Rating
|
|
| OP Speed:
|
661.28
|
SF / SC
|
1.80
|
|
Date
|
7/13
|
Oil Capacity
|
3.0
|
|
A D D I T I O N A L C A T A L O G I N F O R M A T I O N
|
|
Torque Rating
|
35,200 Lb-Inches
|
Shaft Diameters
|
High Speed:
2.000
Low Speed:
2.750
|
|
Weight
|
440 Lbs Approx.
|
Assembly
|
19
|
H.S. Shaft
RPM |
Ratio |
Approx. L.S.
Shaft RPM |
HP
Ratings |
Thermal ratings
with 2 cooling fans |
|
1750 RPM
|
2.76
|
640 RPM
|
359 HP
|
214 HP
|
|
1430 RPM
|
520 RPM
|
293 HP
|
193 HP
|
|
1170 RPM
|
420 RPM
|
244 HP
|
175 HP
|
|
870 RPM
|
320 RPM
|
186 HP
|
152 HP
|
|
720 RPM
|
260 RPM
|
156 HP
|
140 HP
|
|
580 RPM
|
210 RPM
|
127 HP
|
127 HP
|
|
|
Notes:
|
Condition:
|
