Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

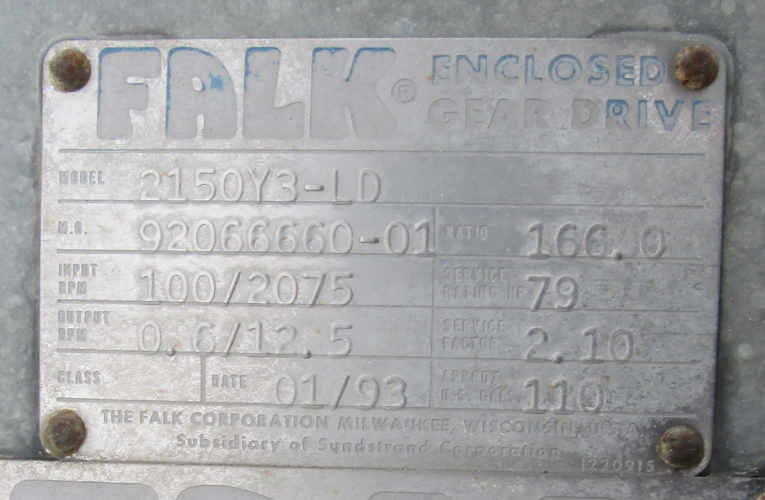

N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      008218
Model:      2150Y3-LD Ratio:      166.0
MO# or S/N      92066660-01 Alt. S/N
IP Speed      100/2075 HP rating      79 Cat. Rating
OP Speed:      0.6/12.5 SF / SC      2.10
Date      01/93 Oil Capacity      110
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      843,000 Lb-Inches Shaft Diameters High Speed:  2.500  Solid
Low Speed:  7.750  Solid
Weight      8,900 Lbs Approx. Assembly      1
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
166:1

10.5 RPM
158 HP
1430 RPM
8.6 RPM
130 HP
1170 RPM
7.0 RPM
108 HP
870 RPM
5.2 RPM
80.0 HP
720 RPM
4.3 RPM
66.5 HP
580 RPM
3.5 RPM
53.8 HP
Notes:
Condition: USED

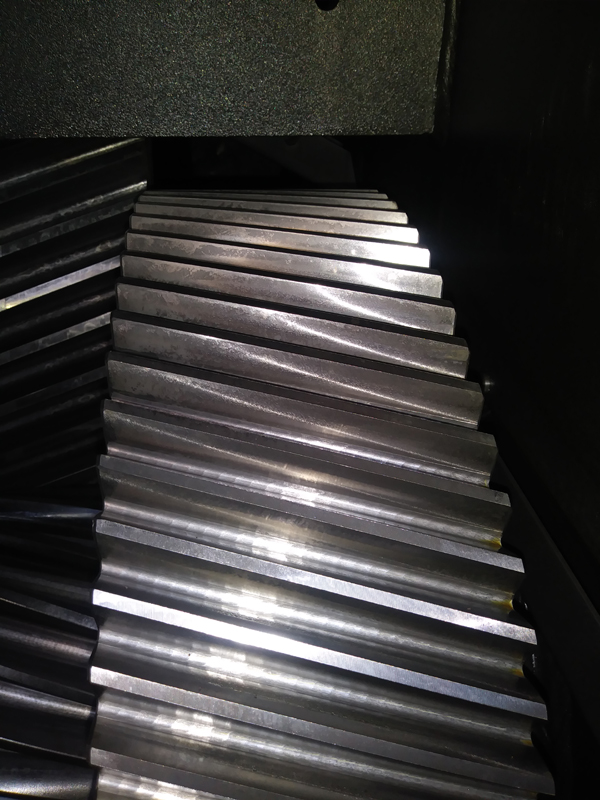

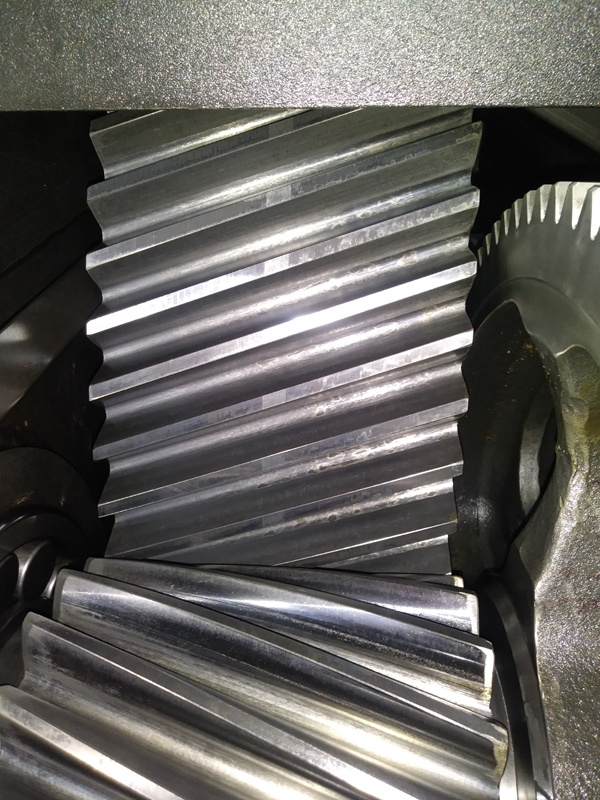

Gears: Excellent



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci



Click on images for larger view.
