Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

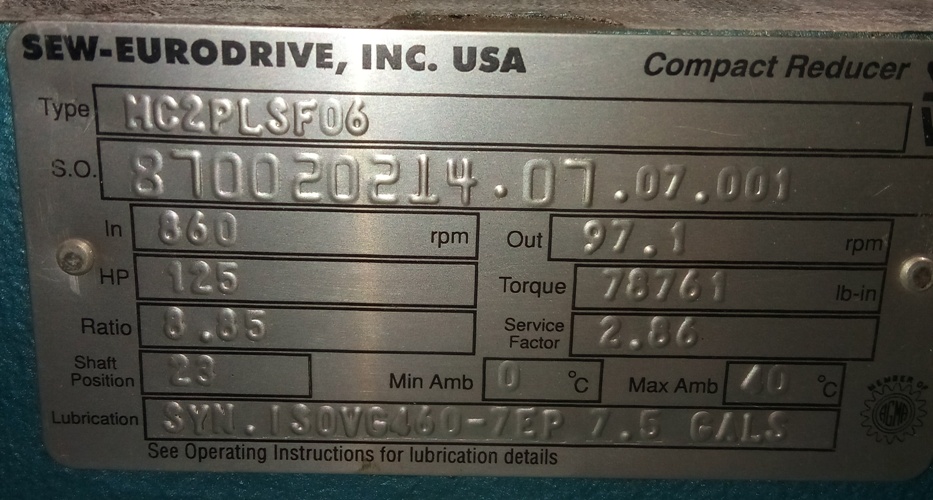

N A M E P L A T E       D A T A
Manufacturer:       SEW EURODRIVE Our ID No.       008232
Model:       MC2PLSF06 Ratio:       8.853
MO# or S/N       870020214.07.07.001 Alt. S/N
IP Speed       860 HP rating       125 Cat. Rating       357.5
OP Speed:       97.1 SF / SC       2.86 SF
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      190,625 Lb-Inches Shaft Diameters High Speed:  70mm (2.756")
Low Speed:  130mm (5.118")
Weight       1,350 Lbs Approx. Assembly       23
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal ratings
with 1 cooling fan
1750 RPM
8.853

197.7 RPM
606 HP
Check catalog, need altitude and ambient temperature
1430 RPM
161.5 RPM
531 HP
1170 RPM
132.2 RPM
458 HP
870 RPM
98.27 RPM
360 HP
Notes:
Condition: Unused Surplus
