- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      BONFIGLIOLI Our ID No.      008237
Model:      HDP 130 3 56.5 LP DD VP B3 Ratio:      56.533
MO# or S/N      USB010321 Alt. S/N      05150007553839001
IP Speed       1750 HP rating       274 Cat. Rating       274
OP Speed:       30.9 SF / SC       1.0
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      524,805 Lb-Inches Shaft Diameters High Speed:   50MM (1.9685")
Low Speed:   170MM (6.6929")
Weight      4,000 Lbs Approx. Assembly      DD
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
56.533

30.9 RPM
274 HP
1430 RPM
25.3 RPM
219 HP
1170 RPM
20.7 RPM
172 HP
870 RPM
15.4 RPM
141 HP
Notes:
Condition: Unused Surplus


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff

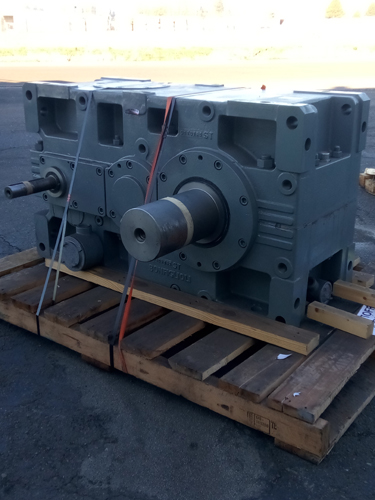

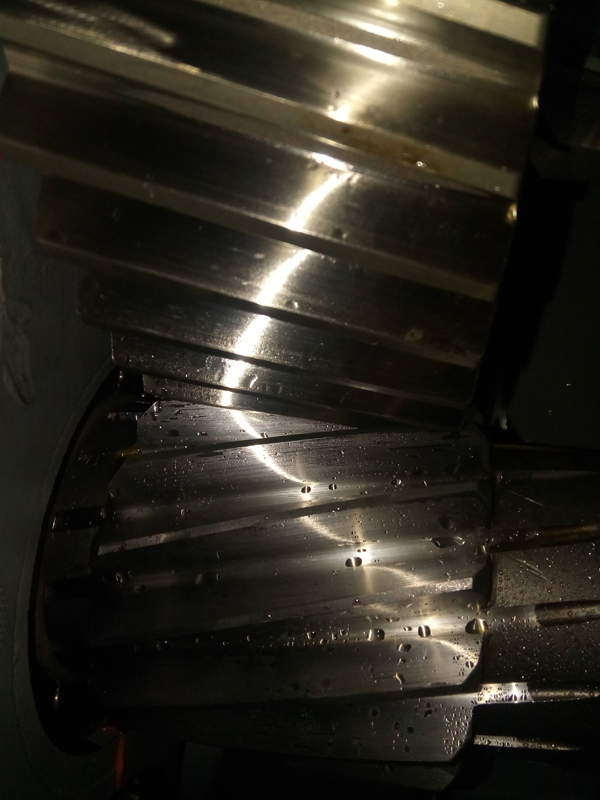

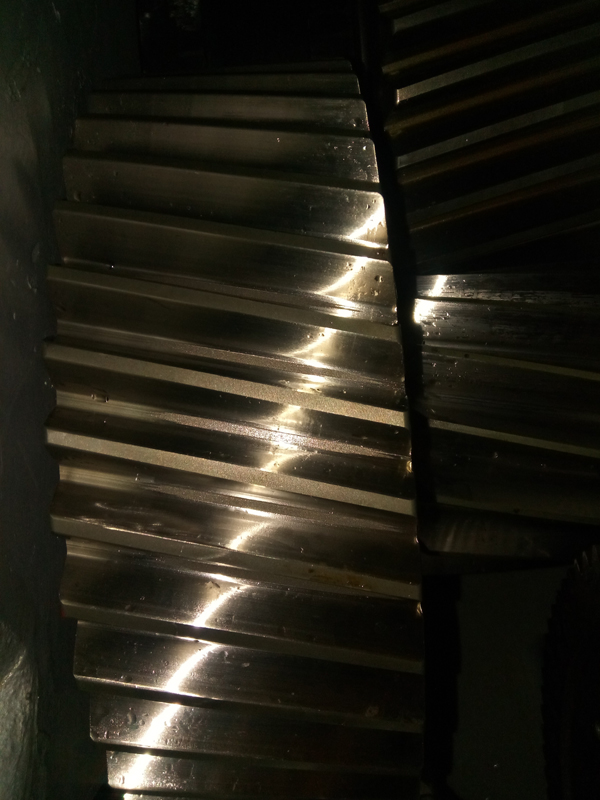

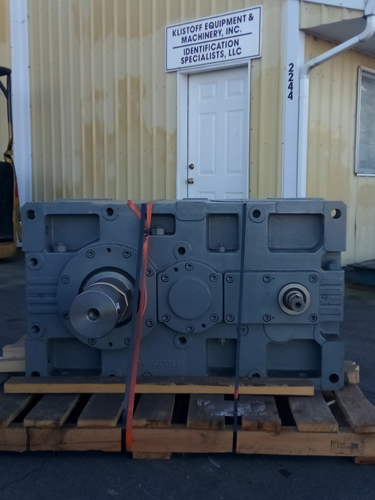

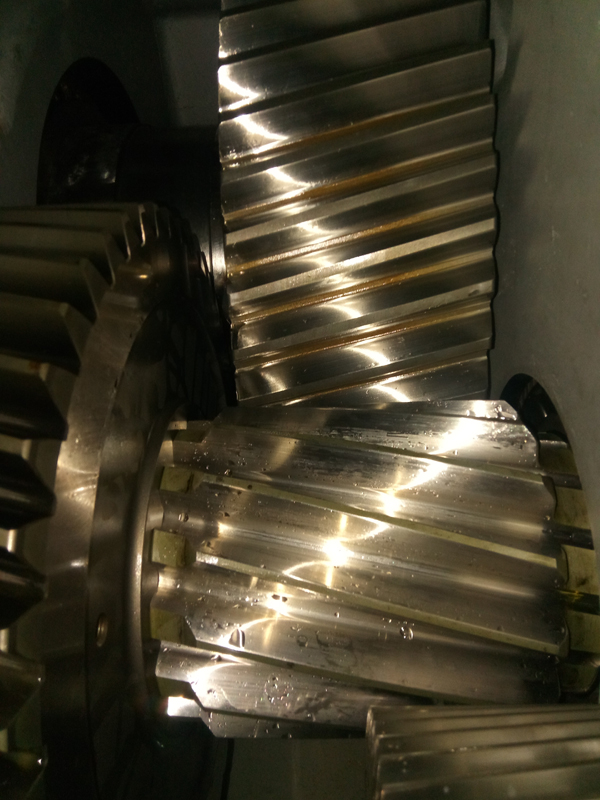

Click on images for larger view.
