- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A

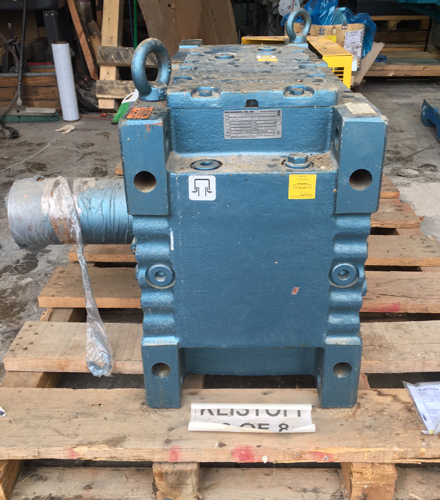

Manufacturer:      SEW Eurodrive Our ID No.       008239
Model:      MC3PLSF07 Ratio:       49.29
MO# or S/N      870100633.08.08.001 Alt. S/N
IP Speed       1750 HP rating       60 Cat. Rating      169
OP Speed:       35.5 SF / SC      2.83 SF
Date       Oil Capacity      11.5 Gals
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      291,231 Lb-Inches Shaft Diameters High Speed:  50mm (1.9685 inches)
Low Speed:  140mm (5.5118 inches)
Weight       1,800 Lbs Approx. Assembly       14
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal ratings
with 1 cooling fan
1750 RPM
49.29

35 RPM
169 HP
226 HP
1430 RPM
29 RPM
140 HP
226 HP
1170 RPM
23 RPM
113 HP
226 HP
870 RPM
17 RPM
84 HP
226 HP
Notes:
Condition: Unused Surplus
