- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A

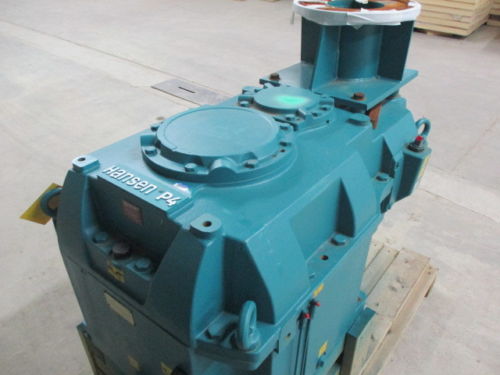

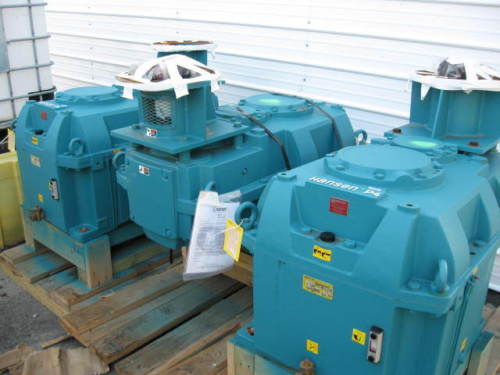

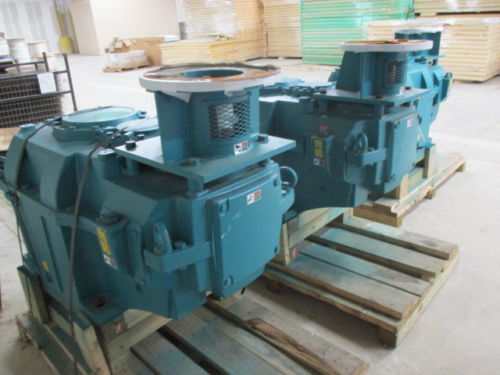

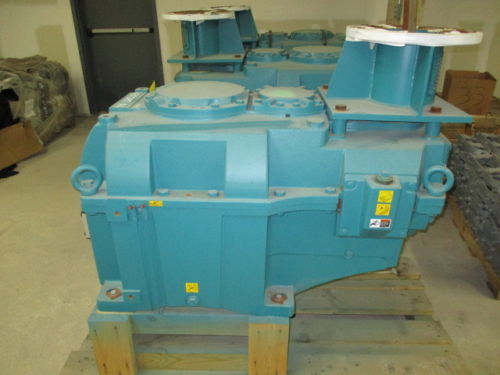

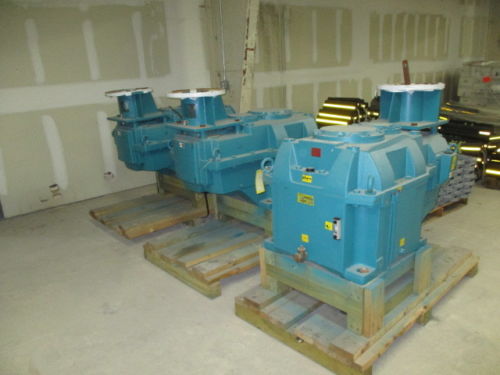

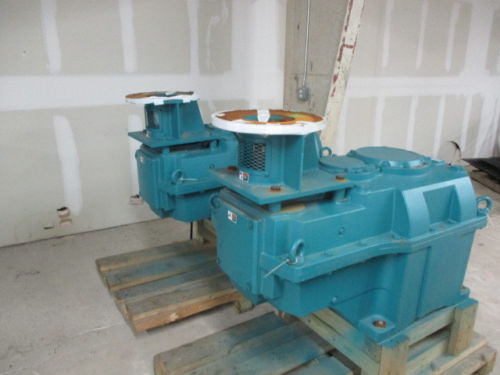

Manufacturer:      Hansen Transmission Our ID No.      008248
Model:      QVPF3-UDN-25 Ratio:      24.839
MO# or S/N      UUM-001918-1A Alt. S/N
IP Speed      1750 HP rating      100 Cat. Rating      514
OP Speed:      70.45 SF / SC      5.14 SF
Date       Oil Capacity      18.5 Approx US Gallons
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      459,000 Lb-Inches Shaft Diameters High Speed:  2.250
Low Speed:  5.500
Weight      3,000 Lbs Approx. Assembly      Low Speed Shaft Down
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
24.839

70.4 RPM
514 HP
1430 RPM
57.6 RPM
429 HP
1170 RPM
47.1 RPM
343 HP
870 RPM
35.0 RPM
259 HP
These units use a "P-Base Motor" Lantern (motor adapter) You can bolt a 40 HP through 200 HP to the same Lantern.
US Electric has the motors "IN STOCK" at Southhaven MS .
HP RPM FRAME Catalog # US Electric Drawing #
40
1800
324HP
CNT40P2FG
09-2434
50
1800
326HP
CNT50P2FG
09-2434
60
1800
364HP
CNT60P2FG
09-2435
75
1800
365HP
CNT75P2FG
09-2435
100
1800
405HP
CNT100P2FG
09-2436
125
1800
444HP
CNT125P2FG
09-3119
150
1800
445HP
CNT150P2FG
09-3119
200
1800
447HP
CNT200P2FG
09-3120
These units use the LOVEJOY curved Jaw Coupling size 55/70. Ratings are shown below for the three different Spiders that fit tis size coupling.
LOVEJOY
Spider Description Nominal Torque In Lbs Maximum Torque In Lbs Rating at 1200 RPM Rating at 1800 RPM
Urethane Spider 92 Shore A (Yellow)
3,625
7,250
69.0 HP
100.0 HP
Urethane Spider 98/95 Shore A (Red)
6,060
12,120
115.0 HP
170.0 HP
Urethane Spider 64 Shore D (Green)
7,300
14,600
125.0 HP
200.0 HP
Notes:
Condition:     UNUSED SURPLUS

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci



Click on images for larger view.
