Klistoff Equipment & Machinery, Inc. - Speed Reducer Data Sheet - |
|||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|||||||||||||||||||||||||||||||||||

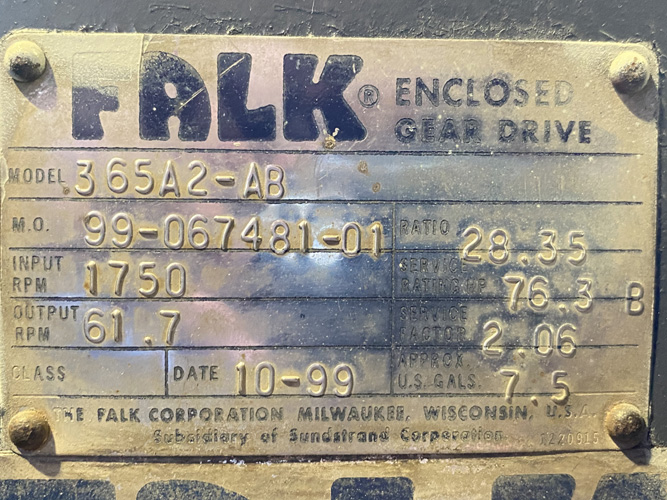

Manufacturer: | FALK | Our ID No. | 008260 | ||||||||||||||||||||||||||||||||
Model: | 365A2-AB | Ratio: | 28.35 | ||||||||||||||||||||||||||||||||
MO# or S/N | 99-0674881-01 | Alt. S/N | |||||||||||||||||||||||||||||||||
IP Speed | 1750 | HP rating | 76.3 | Cat. Rating | |||||||||||||||||||||||||||||||
OP Speed: | 61.7 | SF / SC | 2.06 | ||||||||||||||||||||||||||||||||
Date | 10-99 | Oil Capacity | 7.5 | ||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||
Torque Rating | 138,000 Lb-Inches | Shaft Diameters |
High Speed:
2.000 Low Speed: 4.000 |
||||||||||||||||||||||||||||||||
Weight | 1090 Approx. | Assembly | 18 | ||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||
Notes: |
Condition: |
||||||||||||||||||||||||||||||||||
|
Click on images for larger view. |
