Klistoff Equipment & Machinery, Inc. - Speed Reducer Data Sheet - |
|||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|||||||||||||||||||||||||||||||||||||
Manufacturer: | FALK | Our ID No. | 008288 | ||||||||||||||||||||||||||||||||||
Model: | 2100GHB1A | Ratio: | 4.071 | ||||||||||||||||||||||||||||||||||
MO# or S/N | 7-264472-01 | Alt. S/N | |||||||||||||||||||||||||||||||||||
IP Speed | 1224.88 | HP rating | 200 | Cat. Rating | |||||||||||||||||||||||||||||||||
OP Speed: | 300.88 | SF / SC | 1.38 | ||||||||||||||||||||||||||||||||||
Date | Oil Capacity | 13 | |||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||
Torque Rating | 54,200 Lb-Inches | Shaft Diameters |
High Speed:
3.250 Low Speed: 4.000 |
||||||||||||||||||||||||||||||||||
Weight | 1500 Lbs Approx. | Assembly | 51 | ||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||
Notes: |
Condition: Used / Rebuilt by others |
||||||||||||||||||||||||||||||||||||
|

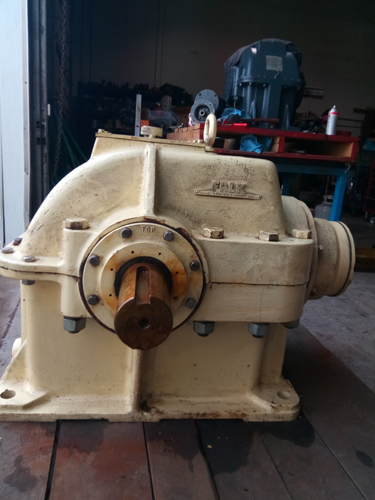

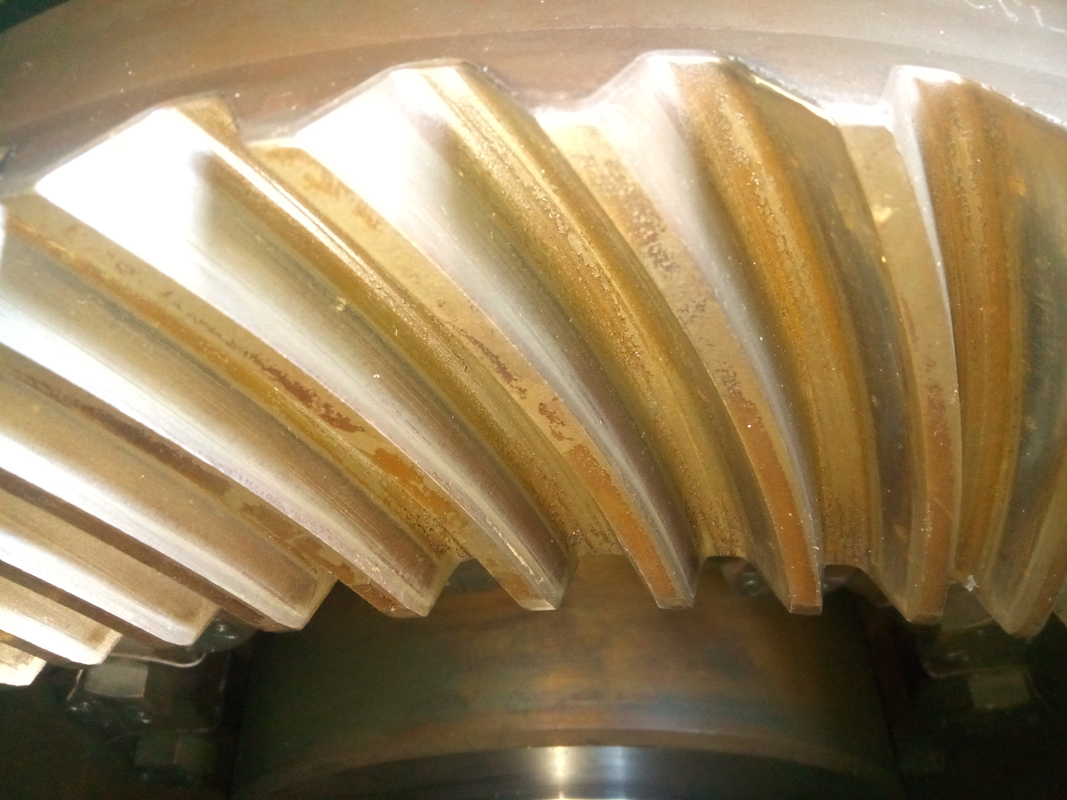

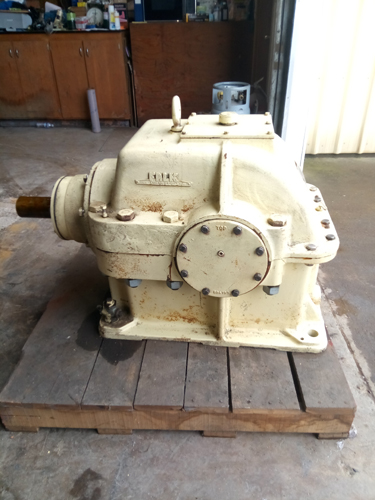

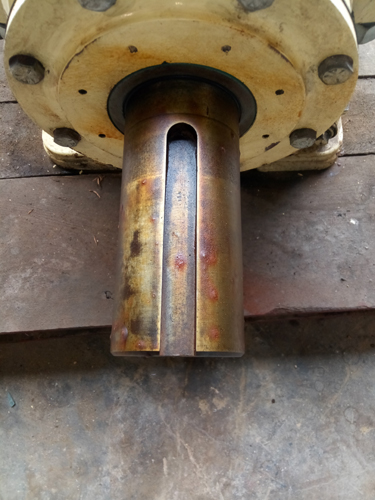

Click on images for larger view. |
