Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      FOOTE-JONES Our ID No.      008306
Model:      HLE-1-1302, 1302HLE, 1302HLD Ratio:      25.6
MO# or S/N      305416 Alt. S/N
IP Speed      1750 HP rating       Cat. Rating      191
OP Speed:       SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      173,000 Lb-Inches Shaft Diameters High Speed:  3.000
Low Speed:  6.000
Weight      3,000 Lbs Approx. Assembly      R-L
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
25.6

68 RPM
191 HP
1170 RPM
45 RPM
133 HP
870 RPM
34 RPM
105 HP
720 RPM
28 RPM
88 HP
Notes:
Condition: Rebuilt by others
HLE-1-1302, 1302HLE, 1302HLD, same dimensions as 1402HLE & 1402HLD


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

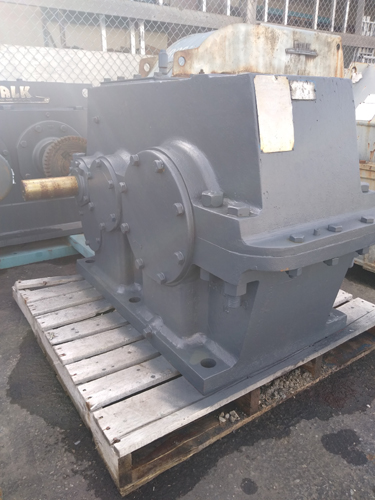

Click on images for larger view.
