Klistoff Equipment & Machinery, Inc. - Speed Reducer Data Sheet - HOME |
||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||

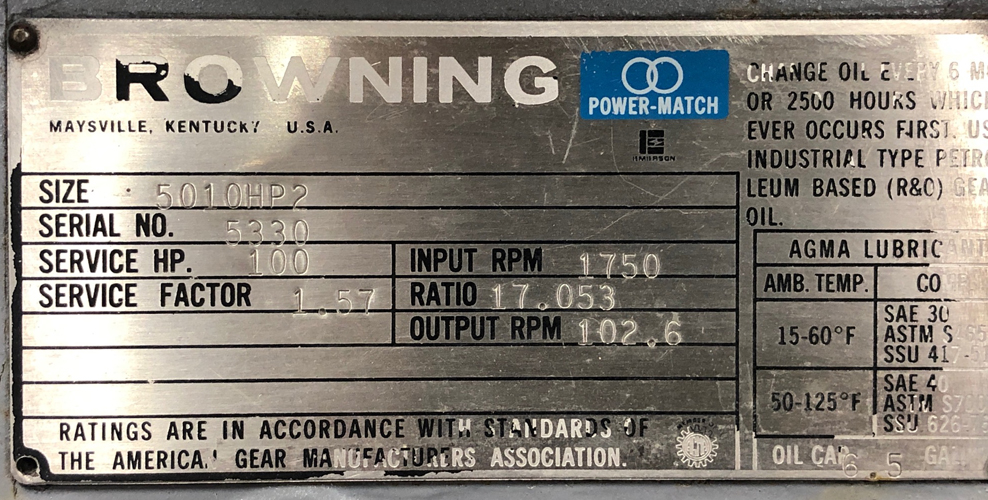

Manufacturer: | BROWNING | Our ID No. | 008307 | |||||||||||||||||||||||||
Model: |
5010HP2 (Same Dimensions as 2080Y2 FALK) |
Ratio: | 17.053 | |||||||||||||||||||||||||
MO# or S/N | 5330 | Alt. S/N | ||||||||||||||||||||||||||
IP Speed | 1750 | HP rating | 100 | Cat. Rating | ||||||||||||||||||||||||
OP Speed: | 102.6 | SF / SC | 1.57 | |||||||||||||||||||||||||
Date | Oil Capacity | |||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Torque Rating | 134,460 Lb-Inches | Shaft Diameters |
High Speed:
2.000 Low Speed: 4.000 |
|||||||||||||||||||||||||
Weight | 1,400 Lbs Approx. | Assembly | 23 | |||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Notes: |
Condition: Rebuilt by others |
|||||||||||||||||||||||||||
|

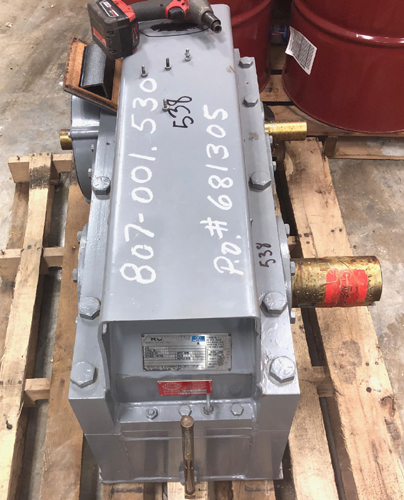

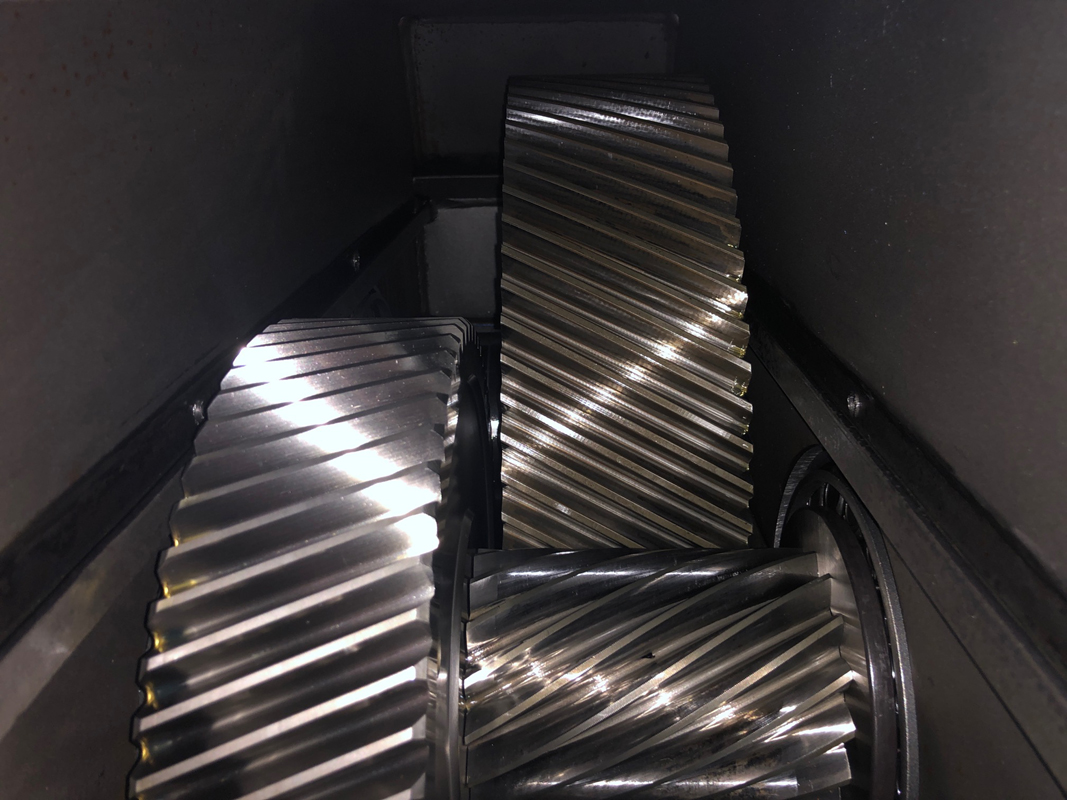

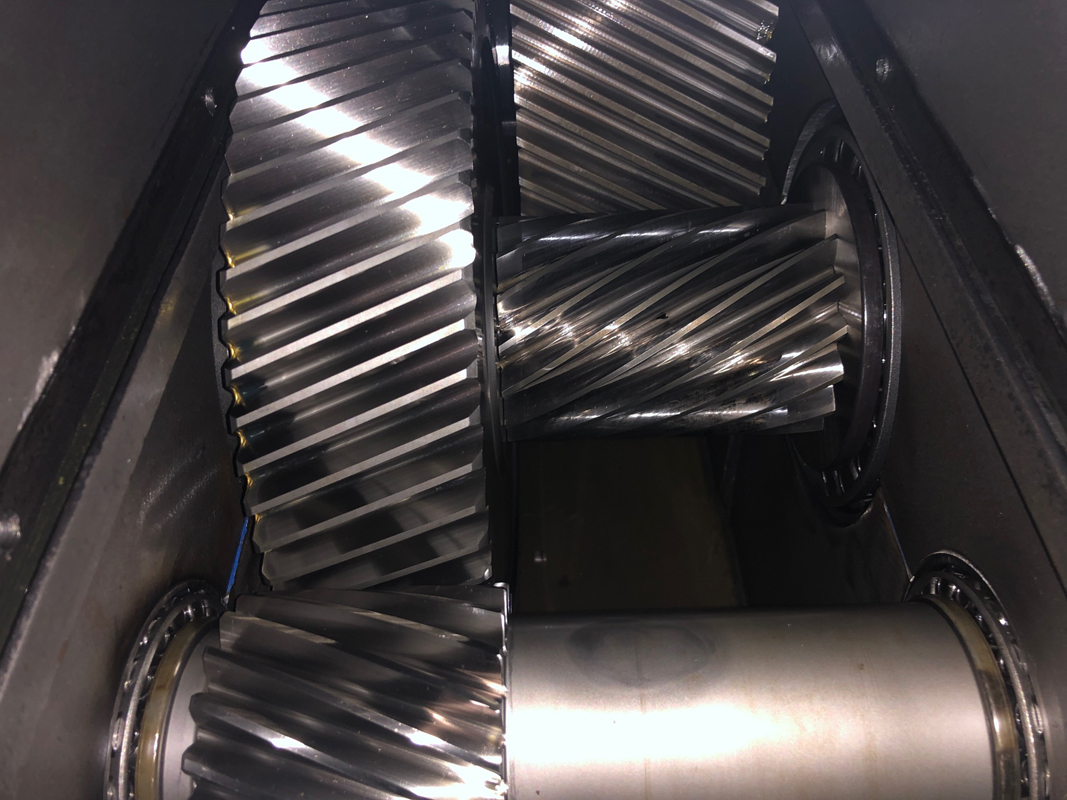

Click on images for larger view. |
