Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      FALK     OMNIBOX SERIES Our ID No.      008367
Model No:      1700WUWM1A Ratio:      300
S/N      47545091009 Center Distance      P=3.25 S=7.00
IP Speed      1750 HP rating      4.27
OP Speed:      5.83 SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      34489 Lb-Inches Shaft Diameters High Speed:  210TC
Low Speed:  2.750
Weight      523 Lbs Approx. Assembly      1A
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
300

5.83 RPM
4.27 HP
1170 RPM
3.90 RPM
3.06 HP
870 RPM
2.90 RPM
2.39 HP
Notes:
   Unused Surplus
(Grove Gear Model No. GR-DUMQ870-300-L6-210TC)

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

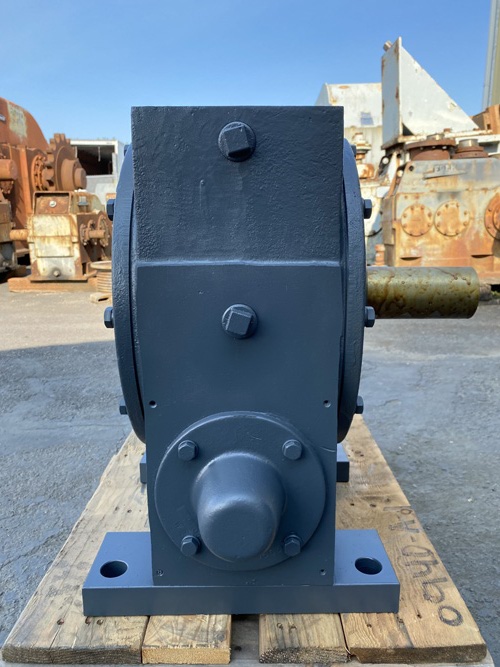

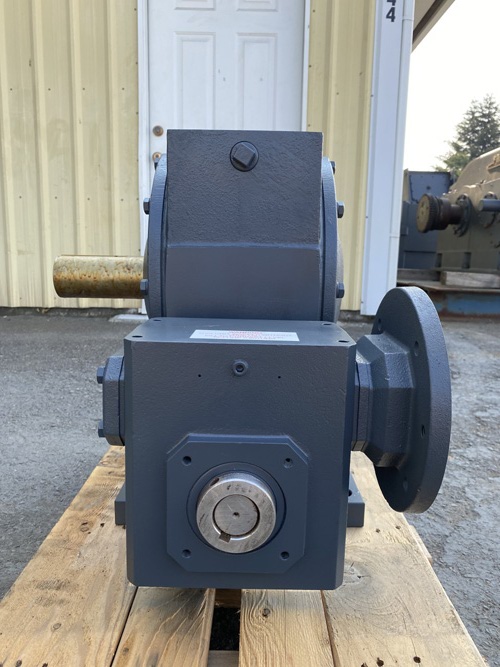

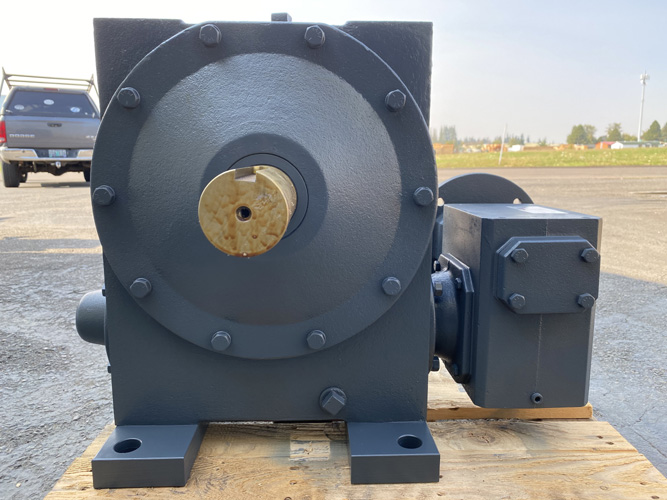

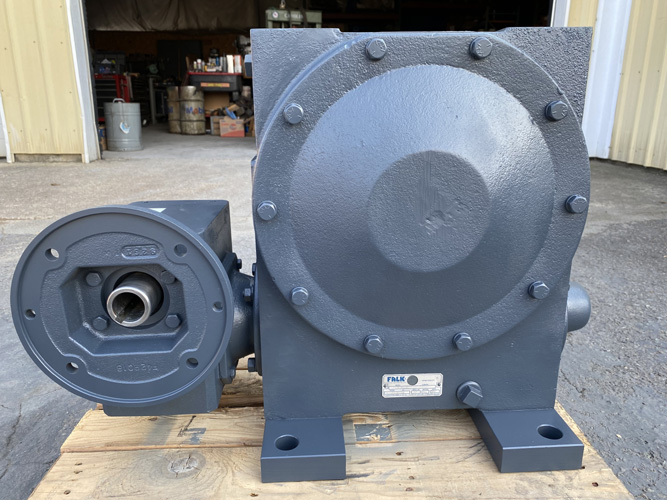

Click on images for larger view.
