- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      008369
Model:      2060Y1-LD Ratio:      2.793
MO# or S/N      93-066238-01 Alt. S/N
IP Speed      1355 HP rating      150 Cat. Rating
OP Speed:      485.2 SF / SC      1.73
Date      01-94 Oil Capacity      4.4
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      37,000 Lb-Inches Shaft Diameters High Speed:    2.000
Low Speed:    3.000
Weight      560 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal
Ratings
W/O Cooling
1750 RPM
2.76

640 RPM
368 HP
151 HP
1430 RPM
520 RPM
306 HP
163 HP
1170 RPM
420 RPM
254 HP
169 HP
870 RPM
320 RPM
194 HP
180 HP
720 RPM
260 RPM
162 HP
HP
580 RPM
210 RPM
133 HP
HP
Notes:
Condition:



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

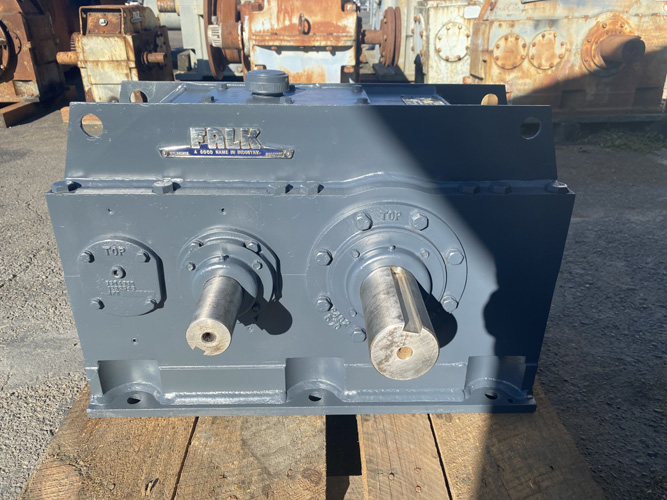

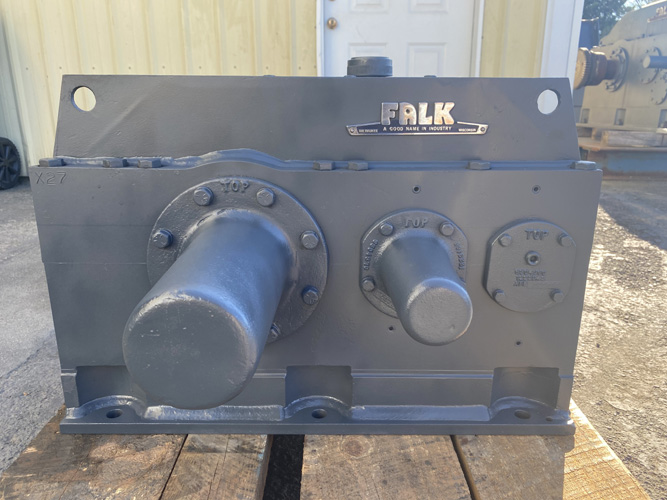

Click on images for larger view.
