- Speed Reducer Data Sheet -
HOME

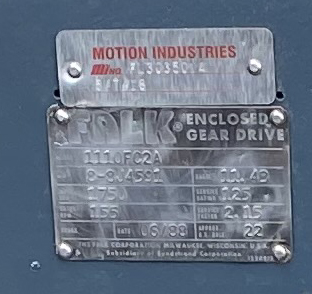

N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      008411
Model:      1110FC2A
Ratio:      11.43
MO# or S/N      8-8J4591 Alt. S/N
IP Speed      1750 HP rating      125 Cat. Rating
OP Speed:      155 SF / SC      2.15
Date      06-88 Oil Capacity      22
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      131,000 Lb-Inches Shaft Diameters High Speed:  3.000
Low Speed:  4.750
Weight      1,600 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
11.43:1

350 RPM
737 HP
1430 RPM
280 RPM
615 HP
1170 RPM
230 RPM
514 HP
870 RPM
175 RPM
393 HP
720 RPM
140 RPM
331 HP
580 RPM
115 RPM
271 HP
Notes:
Condition: Appears to be rebuilt
