Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      000600
Model:      9GDA Ratio:      27.09:1
MO# or S/N      6-561868-01 Alt. S/N
IP Speed      985 RPM HP rating      40 HP Cat. Rating      107 HP
OP Speed:      36.3 RPM SF / SC      1.63 - SF
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      105,000 Lb-Inches Shaft Diameters High Speed:  2.000
Low Speed:  5.000
Weight      2600 Lbs Approx. Assembly
Notes:

Condition: Used Surplus





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

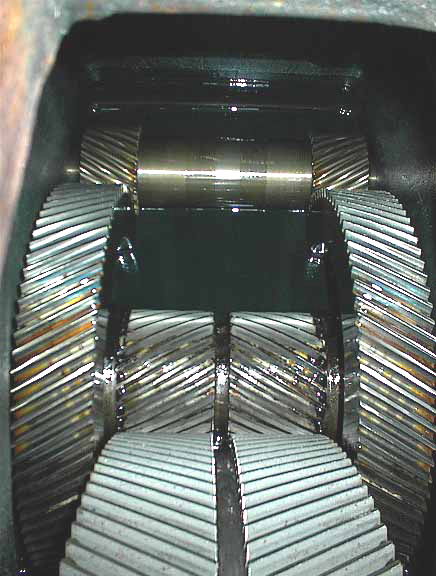

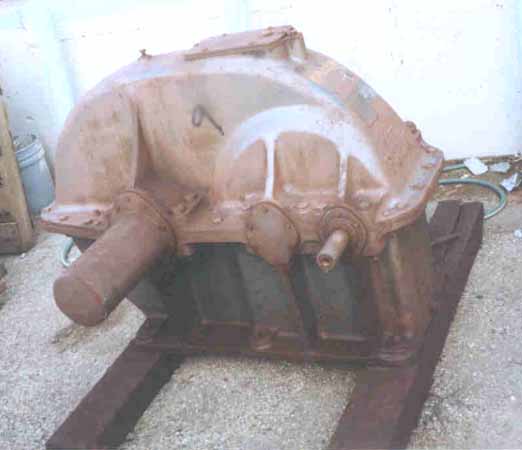

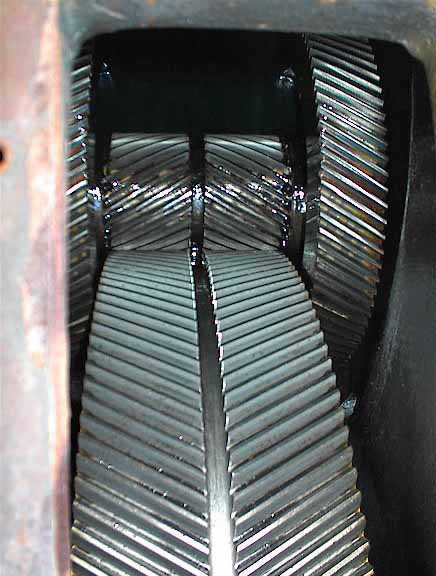

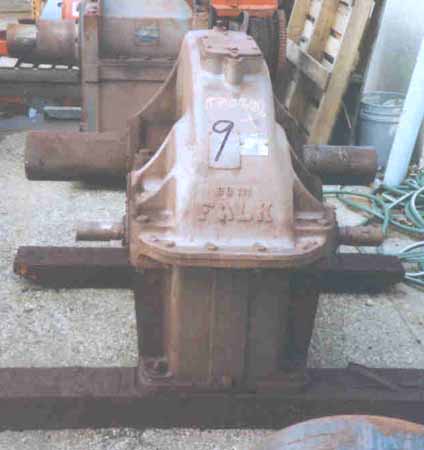

Click on images for larger view.
