Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      000643
Model:      8GRB Ratio:      122.8:1
MO# or S/N      6520-0158 Alt. S/N
IP Speed      1150 RPM HP rating      10 HP Cat. Rating      13.8 HP
OP Speed:       SF / SC      1.38 - SF
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      91,500 Lb-Inches Shaft Diameters High Speed:  1.3120
Low Speed:  3.8750
Weight      2,200 Lbs Approx. Assembly      Right Angle
Notes:

Condition:





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

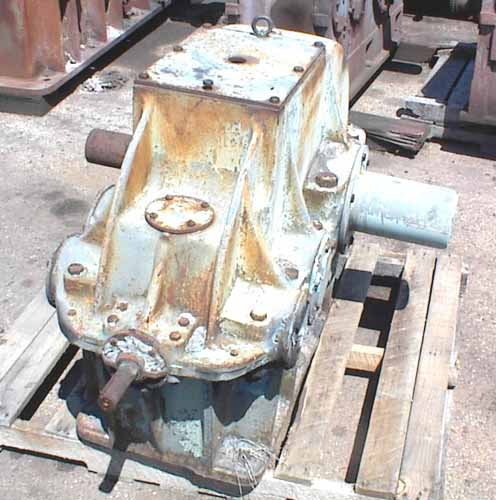

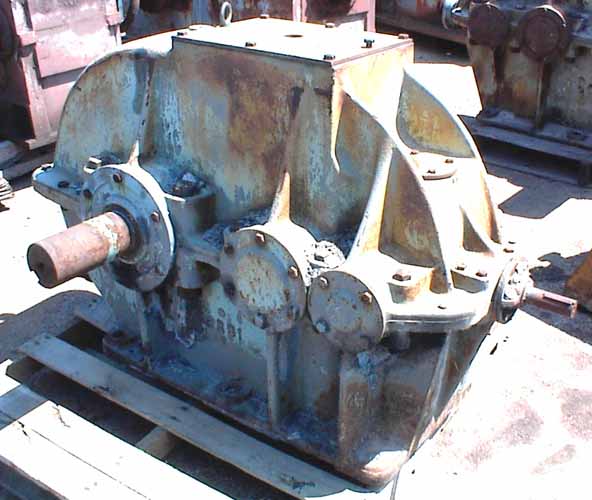

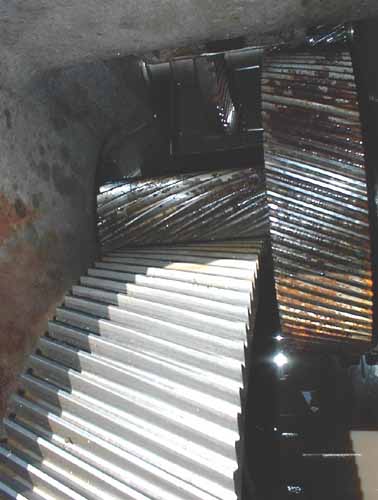

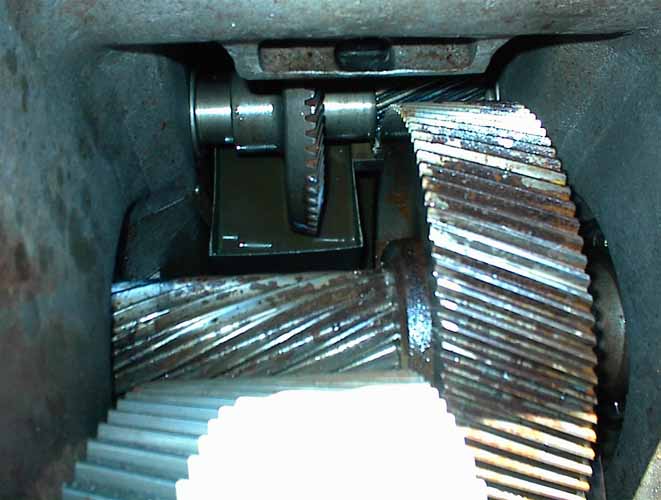

Click on images for larger view.
